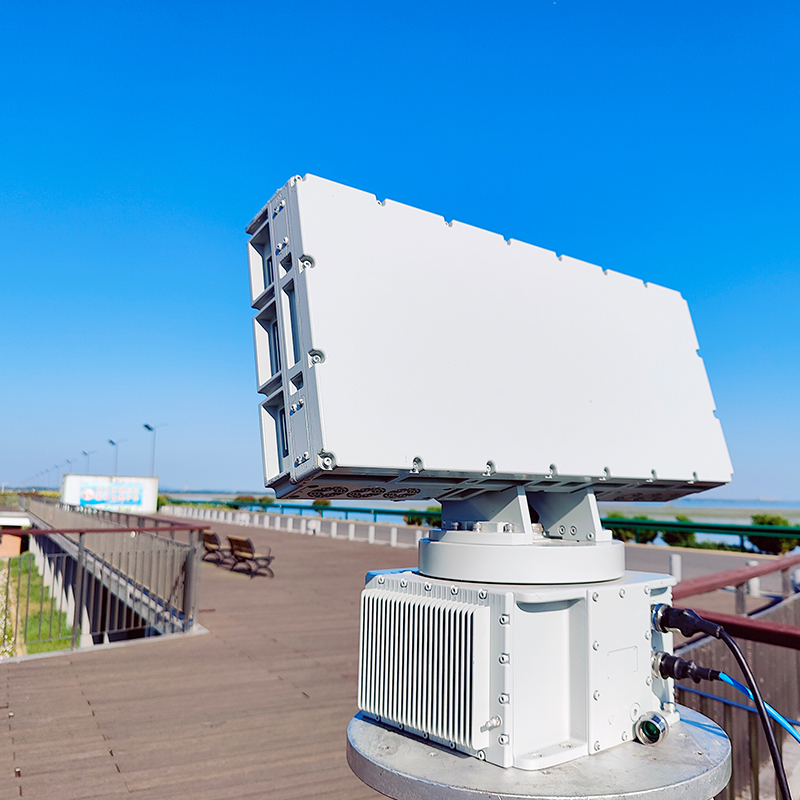

AGT-3D-RD6000KU Airport Bird Deterrence Low Altitude Target Surveillance Radar
Model AGT-3D-RD6000KU
The AGT-3D-RD6000KU is a Ku-band low-altitude surveillance radar using DBF-based simultaneous multi-beam technology to detect and track U…
SKU Cb-000045 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Detects diverse low-altitude targets including UAVs, birds, balloons, and airships
- Provides real-time multi-dimensional target information (position, speed, RCS, target type)
- 360° azimuth coverage with ≥60° pitch coverage
- Supports simultaneous tracking of 500+ target batches
- Ruggedized design with IP66 rating and wide operating temperature range
- Reserved input interface protocol for remote control and radar networking
Overview
- Ku-band low-altitude surveillance radar with DBF-based one-dimensional simultaneous multi-beam architecture
- Pitch multiple beams at the same time with azimuth mechanical scanning
- Real-time detection and tracking of low-altitude aircraft and objects
- Outputs target position, motion posture, echo intensity, RCS, and target type
- Supports remote control and radar network construction via reserved protocol interface
Solutions
Airport bird deterrence and wildlife hazard managementLow-altitude UAV detection and counter-UAS systemsPerimeter and critical infrastructure airspace surveillanceAirship, hot air balloon, and ultralight aircraft monitoringRadar network and integrated air defense applications
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Tracking
| Beam scanning method | Pitch multiple beams simultaneously, azimuth mechanical scanning |
|---|
Detection
| Detection distance | <5km |
|---|---|
| Speed measurement range (radial) | 1m/s ~ 150m/s |
| Storage temperature range | -45℃ ~ 65℃ |
| Working temperature range | -40℃ ~ 65℃ |
Power
| Weight | ≤50kg |
|---|
Environment
| Maximum working humidity | 95%@40℃ |
|---|
Interface
| Communication transmission protocol | UDP |
|---|
