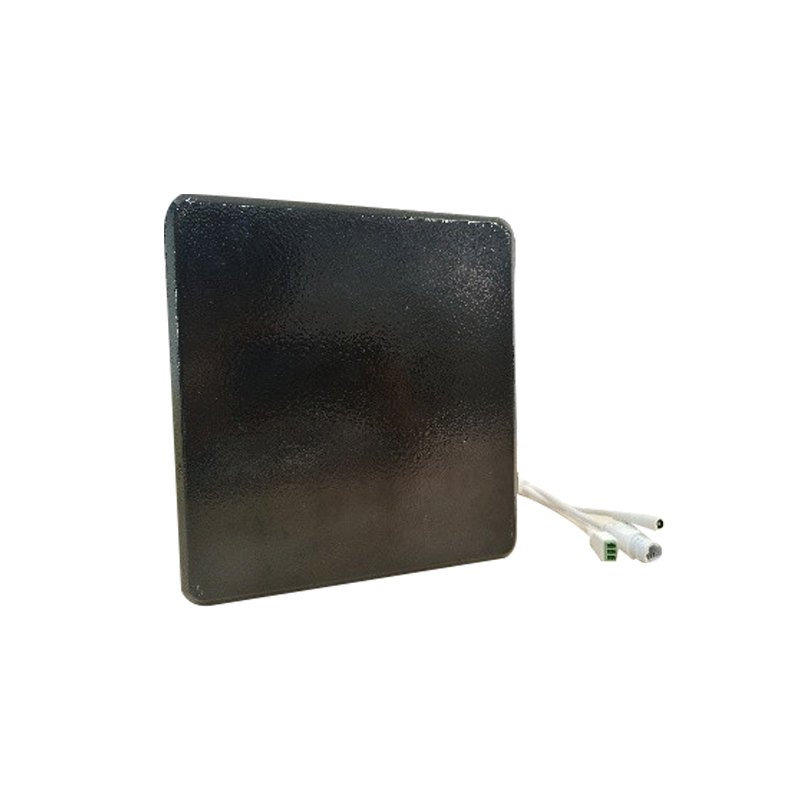

AGT-2D-RD800ES Security and Surveillance Radar for Moving Target Detection
Model AGT-2D-RD800ES
The AGT-2D-RD800ES is a 24 GHz FMCW phased-array security radar that detects and tracks moving targets such as people, vehicles, and ship…
SKU Cb-000046 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- FMCW phased-array radar architecture enables wide-area electronic scanning with ±45° azimuth coverage
- Miniaturized, lightweight, low-power design for easy installation and maintenance-free operation
- Configurable defense zones block false alarms outside the core surveillance area
- Supports multi-radar networking for long-distance, large-scale detection
Overview
- Detects moving targets such as people, vehicles, and ships by emitting 24 GHz electromagnetic waves and receiving Doppler-shifted echoes
- Reports real-time distance, azimuth, and speed for multiple simultaneous targets
- Cooperates with cameras and photoelectric equipment for target tracking, positioning, and identification
Solutions
Intelligent shipping, fishery protection, bridge collision prevention, ship flow monitoring, fisheries management, and ship detection in water areasInfrastructure security for substations, detention centers, and oil pipelinesAirport perimeter security, railway line security, and highway traffic control
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Detection
| Detection Range | <5km |
|---|---|
| Horizontal Angle Range | ±45° |
| Speed Range | ±33m/s |
Accuracy
| Distance measurement accuracy | ±2 m |
|---|---|
| Angle measurement accuracy | ±1° |
Power
| Power Supply | DC12V |
|---|---|
| Power Consumption | ≤25W |
| Weight | 2kg |
Housing
| Enclosure | Durable cast aluminum waterproof shell, IP67 rating |
|---|---|
| Sealing / IP rating | IP67 |
Environment
| Operating Temperature | -40℃~85℃ |
|---|
