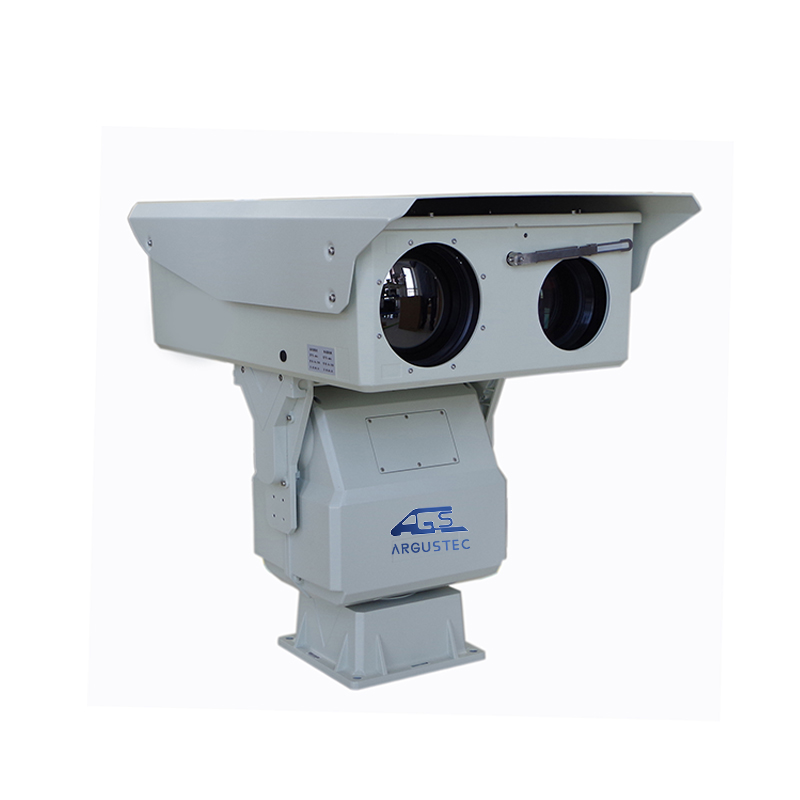

AGT-TTVC6516-2075 Marine TOP Thermal Imaging Camera
Model AGT-TTVC6516-2075
The AGT-TTVC6516-2075 is a marine-mounted dual-band PTZ camera combining fifth-generation uncooled thermal imaging and full-HD visible-li…
SKU Cb-000004 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Dual-band day/night imaging with fifth-generation uncooled VOx thermal detector and full-HD visible CMOS in a compact integrated package.
- High thermal sensitivity with NETD of 50 mK for fine image quality and reduced degradation in fog, rain, and snow.
- Advanced AS optical and precision optomechanical design for superior thermal image quality.
- Non-uniform image correction technology ensures good uniformity and wide dynamic range.
- SDE image detail enhancement with smooth, noise-free images and multiple pseudo-color/polarity modes for low-contrast target detection.
- Full-HD color/black-and-white dual-mode low-illumination CMOS with 30× compact continuous zoom.
- Heavy-duty CNC pan/tilt supports 360° continuous rotation with stable, low-jitter operation.
- Glare protection, anti-sun burn, and configurable scene modes adapt to varying lighting conditions.
- Intelligent cross-border/intrusion detection, target tracking, and front-end hot-spot detection alarm.
- Single-cable IP networking simplifies transmission of video, alarm, and positioning data.
- Rugged aluminum alloy housing with IP66 protection for harsh marine and field environments.
- Optional laser illuminator enables detailed near-infrared observation of thermally detected targets.
- Optional laser ranging, Beidou/GPS, and electronic compass for multi-sensor situational awareness.
Overview
- Integrates infrared thermal imaging, HD visible light, video encoding, pan/tilt, housing, and control electronics in one marine-mounted unit.
- Designed for high integration, compact installation, and reliable operation in challenging marine environments.
- Built around the latest MEMS-based VOx detector with NETD up to 50 mK for fine picture quality and all-weather performance.
- Uses unique AS optical design and high-precision optomechanics for superior thermal image quality.
- Employs excellent non-uniform correction technology for uniform images and wide dynamic range.
- SDE image detail enhancement with multiple pseudo-color and hot black/hot white polarity modes.
- Heavy-duty CNC pan/tilt provides 360° continuous rotation, no dead angles, and stable, low-jitter tracking.
- Supports glare protection, anti-sun burn, multi-configuration scene modes, and intelligent analytics.
- Front-end hot-spot detection alarm based on raw frame data for fast, accurate locking.
- IP network design allows all video, alarm, and positioning data over a single cable.
- Optional laser illuminator creates a three-band system; optional laser ranging, Beidou/GPS, and electronic compass extend situational awareness.
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Detection
| Recognition | Vehicle 3,400 m Human 1,300 m |
|---|
Sensor
| NETD | 50mK（@25℃ F1.0） |
|---|
Lens
| Focallength | 31～155 mm |
|---|---|
| Zoom | Electric zoom |
| Focus | manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed |
| Optical machine | 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process |
| Focal length | 22~750mm, 200 Megapixel, electric zoom (optional |
| Infrared correction | Optical infrared correction design, day and night focus consistent |
| Focus | Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed |
| Automatic aperture | Support |
| Preset Position | Precision potentiometer, zoom focus Feedback |
Image Processing
| Image enhancement | SDE digital image enhancement technology to enhance image details |
|---|---|
| Pseudo-color polarity | 16 kinds of pseudo-color images, hot black / hot white two polarities |
| Image parameters | AGC automatic gain control, brightness, contrast |
| Electronic zoom | 2×, 4×, support global synchronous display |
| NUC correction | automatic / manual correction, background correction |
Visible Camera
| Resolution | 2 Mega pixels, 1920×1080 |
|---|---|
| Illumination | color: |
| Encoding | H.265/H.264 video format, support multi-stream |
| Video bit rate | 32Kbps ~ 16Mbps, 60Hz 30 frames / sec |
Enhancements
| Power | 15 W |
|---|---|
| Wavelength | 810nm china grade infrared laser |
| Homogenization | GHT-II high-definition lens group ultra-homogenization patented technology, brightness balance of all focal lengths is > 92% |
| Laser safety | ZQB safety laser beam processing patent technology, in line with international IEC60825 safety standards |
| Glare protection | support, anti-sun burn function |
| Temperature correction | no thermal image design, imaging resolution is not affected by temperature |
| Scene mode | support multiple configuration scenarios, adapt to no environment application |
| Auto focus tuning | support remote auto focus precision parameter adjustment, adapt to different scenes |
| Day and night cruise | day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes |
| Lens servo | support lens preset position, focal length return, focus positioning function |
| Parameter setting | OSD menu remote call operation |
| Remote maintenance | support embedded program remote upgrade for easy after-sales maintenance |
Housing
| Material | integral aluminum alloy housing, stainless steel, anti strong wind ; |
|---|---|
| Structure | Integral double window |
| Window glass | 4mm optical glass,transmission＞98% ； |
| Surface coating | PTA three-proofing coatings, |
| Protection | IP66(IP67 optional ) |
| Interface | waterproof aviation connector ; |
PT
| Load | 50kg PTZ |
|---|---|
| Range | Pan 0 ~ 360 °, Tilt -45 ° ~ +45 ° |
| Speed | horizontal |
| Preset position | 255, support lens zoom, focus preset |
| Accuracy | ±0.1° |
| Patrol sweep | support 6 cruises, 1 apple peel, 1 line sweep |
| Watch | Preset / Auto Cruise Route / Auto Scan Route |
| Power-off memory | support (recoverable position before power-off, preset position status, cruise status, line sweep status) |
| Bearing information | support angle query return, positioning |
| Zero point correction | support north direction zero point remote correction function |
| Power consumption | about 120W |
| Weight | 23kg |
Interface
| Network interface | 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication) |
|---|---|
| Network protocol | support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols |
| Power supply | AC/DC24V, anti-reverse protection |
| Physical interface | alloy waterproof aviation plug |
Power
| Total power consumption | 120W |
|---|---|
| Total weight | 25kg (including Pan/Tilt) |
Environment
| Working temperature | -25 ℃~ +60℃ (optional -40 ℃) |
|---|---|
| Storage temperature | -45℃ ~ + 70 ℃ |
| Humidity | <90% |
| Impact resistance | 15g (according to the |
| Lightning protection | built-in surge protection of interface circuit, power supply 4000V, signal 2000V |
| Anti-salt fog | at pH |
