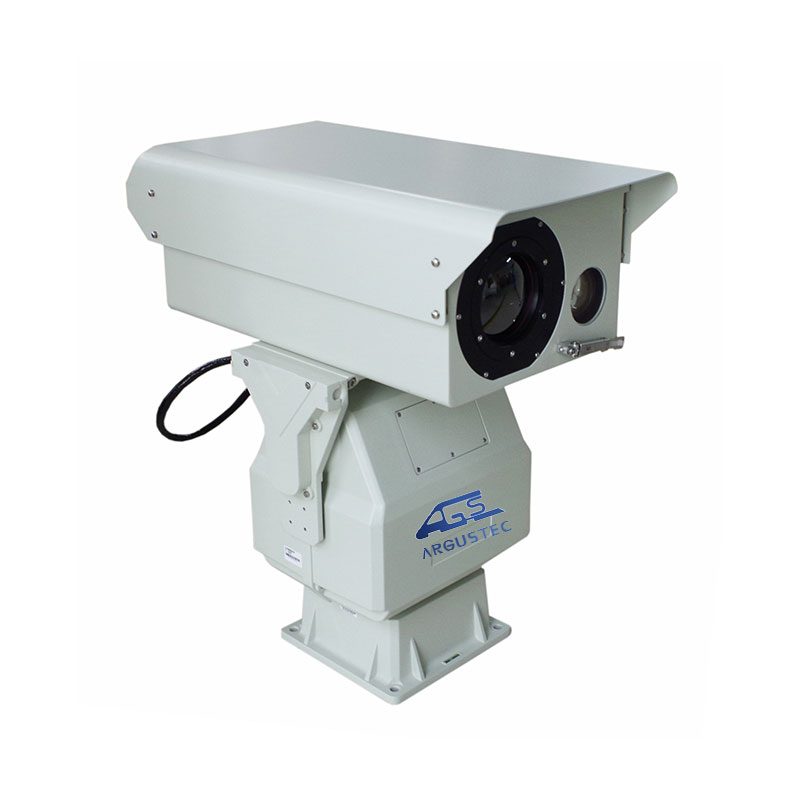

AGT-TTVC12615C-2186 PTZ Distance HD Thermal Imaging Camera for Border
Model AGT-TTVC12615C-2186
The AGT-TTVC12615C-2186 is a dual-band PTZ camera that combines a 1280×1024 uncooled thermal imager and a 2 MP full-HD visible-light modu…
SKU Cb-000034 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Integrates infrared thermal imaging, full-HD visible light, video coding, and pan/tilt control electronics in one unit for simplified deployment
- Latest-generation MEMS-based VOx detector with NETD down to 50 mK delivers finer image quality with less degradation from fog, rain, and snow
- Unique AS optical and high-precision optomechanical design combined with non-uniform correction for superior uniformity and dynamic range
- SDE image detail enhancement with smooth, noise-free images, 16 pseudo-color modes, and hot-black/hot-white polarity for detecting low-contrast hidden targets
- Full-HD color/black-and-white dual-mode low-illumination CMOS sensor with 70× compact continuous zoom lens in a small, lightweight package
- Heavy-duty CNC pan/tilt with 360° continuous rotation, no blind spots, stable operation, and minimal image jitter
- Glare protection and anti-sun-burn with multi-configuration scene modes for varied conditions
- Intelligent cross-border/intrusion detection and target tracking enable unattended operation
- Front-end hot-spot detection and alarm based on raw frame data for fast, accurate locking with remotely configurable thresholds, target size, and quantity
- IP network design allows a single cable to carry all video, alarm, and positioning data
- Rugged aluminum alloy housing rated IP66 for rain, dust, and harsh-environment operation
Overview
- Dual-band long-range day/night camera built on sixth-generation uncooled infrared and full-HD visible-light imaging technology.
- Thermal channel: 1280×1024 high-sensitivity uncooled focal-plane detector, AS optical design, miniaturized infrared lens, and advanced image processing for fine, smooth imagery.
- Visible channel: full-HD color/black-and-white dual-mode low-illumination CMOS sensor with 70× compact continuous zoom lens, reducing overall size and installation effort.
- Heavy-duty CNC pan/tilt enables 360° continuous rotation and observation out to 13 km.
- Industrial-grade embedded control electronics manage zoom, focus, mode switching, and stable PTZ control.
- All-aluminum alloy housing with IP66 protection for reliable long-term field operation.
Solutions
Seaport and airport monitoringWater system monitoringStorage and warehouse monitoringBase security monitoringOilfield and oil depot securityFire source prevention and monitoringEcological and environmental monitoringBorder and coastal defenseUrban security and anti-UAV applicationsHighway and railway monitoring
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Detection
| Recognition | Vehicle 3400 m Human 1600 m |
|---|
Sensor
| NETD | 50mK（@25℃ F1.0） |
|---|
Lens
| Focallength | 25～150mm |
|---|---|
| Zoom | Electric zoom |
| Focus | manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed |
| Optical machine | 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process |
| Focal length | 11~860mm, 2 Mega pixel, electric zoom |
| Infrared correction | Optical infrared correction design, day and night focus consistent |
| Focus | Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed |
| Automatic aperture | Support |
| Preset Position | Precision potentiometer, zoom focus Feedback |
Image Processing
| Image enhancement | SDE digital image enhancement technology to enhance image details |
|---|---|
| Pseudo-color polarity | 16 kinds of pseudo-color images, hot black / hot white two polarities |
| Image parameters | AGC automatic gain control, brightness, contrast |
| Electronic zoom | 1~8X continuous zoom, support global synchronous display |
| NUC correction | automatic / manual correction, background correction |
Visible Camera
| Resolution | 2 Mega pixels, 1920×1080 |
|---|---|
| Illumination | color: |
| Encoding | H.265/H.264 video format, support multi-stream |
| Video bit rate | 32Kbps ~ 16Mbps, 60Hz 30 frames / sec |
Housing
| Material | integral aluminum alloy housing, stainless steel, anti strong wind ; |
|---|---|
| Structure | Integral double window |
| Window glass | 4mm optical glass,transmission＞98% ； |
| Surface coating | PTA three-proofing coatings, |
| Protection | IP66(IP67 optional ) |
| Interface | waterproof aviation connector ; |
PT
| Load | 50kg PTZ |
|---|---|
| Range | Pan 0 ~ 360 °, Tilt -45 ° ~ +45 ° |
| Speed | horizontal |
| Preset position | 255, support lens zoom, focus preset |
| Accuracy | ±0.1° |
| Patrol sweep | support 6 cruises, 1 apple peel, 1 line sweep |
| Watch | Preset / Auto Cruise Route / Auto Scan Route |
| Power-off memory | support (recoverable position before power-off, preset position status, cruise status, line sweep status) |
| Bearing information | support angle query return, positioning |
| Zero point correction | support north direction zero point remote correction function |
| Power consumption | about 120W |
| Weight | 23kg |
Interface
| Network interface | 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication) |
|---|---|
| Network protocol | support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols |
| Power supply | AC/DC24V, anti-reverse protection |
| Physical interface | alloy waterproof aviation plug |
Enhancements
| Glare protection | support, anti-sun burn function |
|---|---|
| Temperature correction | no thermal image design, imaging resolution is not affected by temperature |
| Scene mode | support multiple configuration scenarios, adapt to no environment application |
| Auto focus tuning | support remote auto focus precision parameter adjustment, adapt to different scenes |
| Day and night cruise | day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes |
| Lens servo | support lens preset position, focal length return, focus positioning function |
| Parameter setting | OSD menu remote call operation |
| Remote maintenance | support embedded program remote upgrade for easy after-sales maintenance |
Power
| Total power consumption | 120W |
|---|---|
| Total weight | 25kg (including Pan/Tilt) |
Environment
| Working temperature | -25 ℃~ +60℃ (optional -40 ℃) |
|---|---|
| Storage temperature | -45℃ ~ + 70 ℃ |
| Humidity | <90% |
| Impact resistance | 15g (according to the |
| Lightning protection | built-in surge protection of interface circuit, power supply 4000V, signal 2000V |
| Anti-salt fog | at pH |
