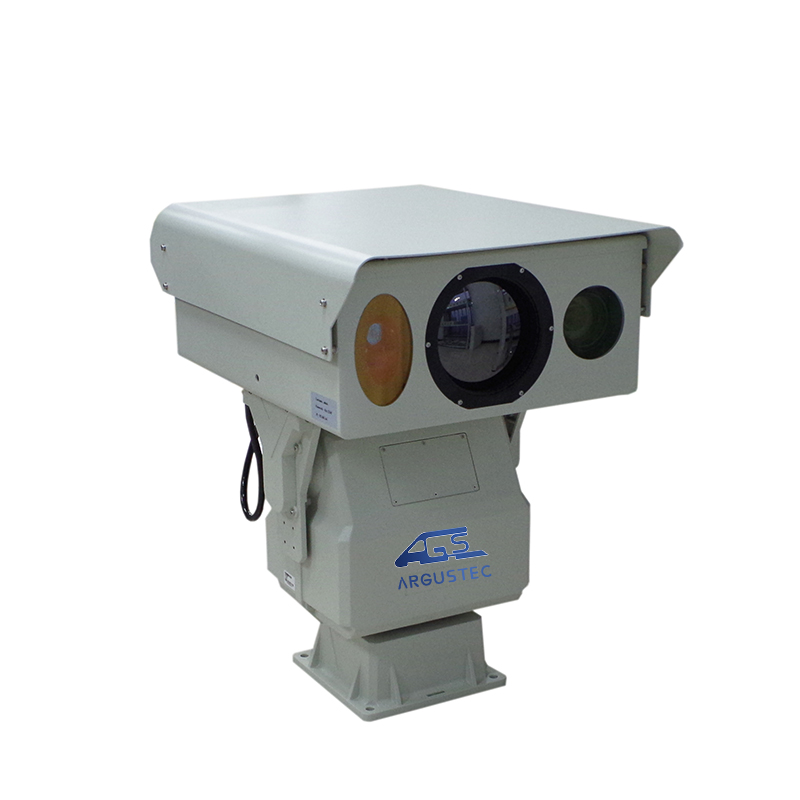

AGT-TTVC121030C-2186 All-Weather Dual-Sensor Thermal Camera
Model AGT-TTVC121030C-2186
The AGT-TTVC121030C-2186 is an all-weather dual-sensor PTZ camera combining 1280×1024 thermal imaging and 2 MP visible-light video for lo…
SKU Cb-000054 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Integrates infrared thermal imaging, HD visible light, video encoding, pan/tilt housing, and control electronics in one compact, easy-to-install system
- Latest-generation MEMS-based VOx detector with NETD down to 50 mK for finer image quality and better performance in fog, rain, and snow
- Unique AS optical and high-precision optomechanical design with excellent non-uniformity correction for superior image uniformity and dynamic range
- SDE image detail enhancement with smooth, noise-free images, multiple pseudo-colors, and hot black/hot white polarity modes for detecting low-contrast hidden targets
- Full HD color/black-and-white dual-mode low-illumination CMOS with 70× compact continuous zoom visible lens for small size and light weight
- Heavy-duty CNC pan/tilt with 360° continuous rotation, no blind spots, stable operation, and minimal image jitter
- Glare protection and anti-sun-burn with multi-configuration scene modes for different operating conditions
- Intelligent functions including cross-border/intrusion detection and target tracking for unattended operation
- Front-end hot-spot detection and alarm based on raw frame data for fast, accurate, delay-free positioning with remotely configurable thresholds and target sizes
- IP network design allows a single network cable to carry all video, alarm, and positioning data for simple system networking
- Rugged all-aluminum housing with IP66 protection resists rain and dust for harsh-environment operation
Overview
- The AGT-TTVC121030C-2186 dual-band camera is based on sixth-generation uncooled infrared technology and HD visible-light imaging technology for remote day/night monitoring.
- Thermal imaging uses a high-sensitivity 1280×1024 uncooled focal-plane detector, AS-optics miniaturized infrared lens, advanced digital circuits, and image-processing algorithms to produce fine, smooth imagery.
- Visible light uses a full HD color/black-and-white dual-mode low-illumination CMOS sensor and 70× compact continuous-zoom lens, significantly reducing overall size and easing installation.
- A 360° full-scale pan/tilt enables search and observation out to 18 km, while an industrial-grade embedded control system provides stable zoom, focus, mode switching, and pan/tilt control.
- The super-strength aluminum housing achieves IP66 protection for reliable medium- and long-term field operation.
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Detection
| Recognition | Vehicle 6000 m Human 3000 m |
|---|
Sensor
| NETD | 50mK（@25℃ F1.0） |
|---|
Lens
| Focallength | 30～300mm |
|---|---|
| Zoom | Electric zoom |
| Focus | manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed |
| Optical machine | 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process |
| Focal length | 11~860mm, 2 Mega pixel, electric zoom |
| Infrared correction | Optical infrared correction design, day and night focus consistent |
| Focus | Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed |
| Automatic aperture | Support |
| Preset Position | Precision potentiometer, zoom focus Feedback |
Image Processing
| Image enhancement | SDE digital image enhancement technology to enhance image details |
|---|---|
| Pseudo-color polarity | 16 kinds of pseudo-color images, hot black / hot white two polarities |
| Image parameters | AGC automatic gain control, brightness, contrast |
| Electronic zoom | 1~8X continuous zoom, support global synchronous display |
| NUC correction | automatic / manual correction, background correction |
Visible Camera
| Resolution | 2 Mega pixels, 1920×1080 |
|---|---|
| Illumination | color: |
| Encoding | H.265/H.264 video format, support multi-stream |
| Video bit rate | 32Kbps ~ 16Mbps, 60Hz 30 frames / sec |
Housing
| Material | integral aluminum alloy housing, stainless steel, anti strong wind ; |
|---|---|
| Structure | Integral double window |
| Window glass | 4mm optical glass,transmission＞98% ； |
| Surface coating | PTA three-proofing coatings, |
| Protection | IP66(IP67 optional ) |
| Interface | waterproof aviation connector ; |
PT
| Load | 50kg PTZ |
|---|---|
| Range | Pan 0 ~ 360 °, Tilt -45 ° ~ +45 ° |
| Speed | horizontal |
| Preset position | 255, support lens zoom, focus preset |
| Accuracy | ±0.1° |
| Patrol sweep | support 6 cruises, 1 apple peel, 1 line sweep |
| Watch | Preset / Auto Cruise Route / Auto Scan Route |
| Power-off memory | support (recoverable position before power-off, preset position status, cruise status, line sweep status) |
| Bearing information | support angle query return, positioning |
| Zero point correction | support north direction zero point remote correction function |
| Power consumption | about 120W |
| Weight | 23kg |
Interface
| Network interface | 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication) |
|---|---|
| Network protocol | support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols |
| Power supply | AC/DC24V, anti-reverse protection |
| Physical interface | alloy waterproof aviation plug |
Enhancements
| Glare protection | support, anti-sun burn function |
|---|---|
| Temperature correction | no thermal image design, imaging resolution is not affected by temperature |
| Scene mode | support multiple configuration scenarios, adapt to no environment application |
| Auto focus tuning | support remote auto focus precision parameter adjustment, adapt to different scenes |
| Day and night cruise | day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes |
| Lens servo | support lens preset position, focal length return, focus positioning function |
| Parameter setting | OSD menu remote call operation |
| Remote maintenance | support embedded program remote upgrade for easy after-sales maintenance |
Power
| Total power consumption | 120W |
|---|---|
| Total weight | 25kg (including Pan/Tilt) |
Environment
| Working temperature | -25 ℃~ +60℃ (optional -40 ℃) |
|---|---|
| Storage temperature | -45℃ ~ + 70 ℃ |
| Humidity | <90% |
| Impact resistance | 15g (according to the |
| Lightning protection | built-in surge protection of interface circuit, power supply 4000V, signal 2000V |
| Anti-salt fog | at pH |
