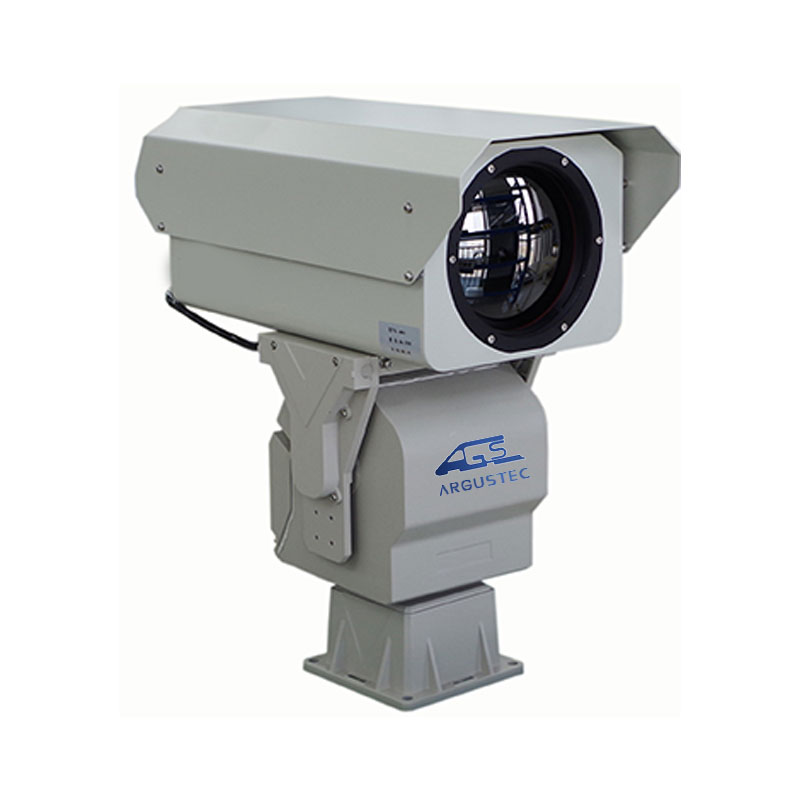

AGT-TC6519 IR High Speed Thermal Imaging Camera for Building Inspection
Model AGT-TC6519
The AGT-TC6519 is a long-range, high-speed thermal PTZ camera built around a 640×512 VOx uncooled detector with 38–190mm continuous zoom,…
SKU Cb-000035 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Long range 24-hours monitoring
- Delicate and smooth images
- Convenient for installation and application
- 360 degree omni-directional Pan-Tilt
- Super-strong aluminum alloy with IP66
- Higher sensitivity
- Effective in all environments
- Small size and low weight
Overview
- VOx uncooled detector, 640×512 (384×288 optional)
- NETD less than 50mK (@25°C F1.0)
- SDE digital image processing, AGC, 2X digital amplification
- 10 pseudo color and B/W, B/W inverse
- Intelligent functions: cross-border/intrusion detection and target tracking
- 255 level alarm threshold can be setup
- Advanced algorithm support shot-point/fire detection and alert
- One integral aluminum alloy housing, waterproof, IP66 weatherproof, anti-dust
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
General
| Product name | AGT-TC6519 IR High Speed Thermal Imaging Camera for Building Inspection |
|---|---|
| Model | AGT-TC6519 |
| SMARTID | Cb-000035 |
Housing
| Material | Aluminum alloy |
|---|---|
| IP rating | IP66 |
| Construction | One integral aluminum alloy housing, water proof, anti-dust |
Sensor
| Detector type | 5th generation FPA VOx Detector |
|---|---|
| Technology | VOx uncooled detector |
| Resolution | 640x512 pixel (optional 384x288 pixel) |
Thermal
| Spectral range | 7.5～14μm |
|---|---|
| NETD | 50mK (@25°C F1.0) |
Lens
| Focal length | 38 - 190mm |
|---|
Optical
| Field of view | 17.6°x13.2° - 3.5°x2.6° |
|---|
Detection
| Vehicle range | 16400m |
|---|---|
| Human range | 5800m |
Identification
| Vehicle range | 4200m |
|---|---|
| Human range | 1600m |
PTZ
| Duty | 30kg CNC PT |
|---|---|
| Pan range | 0～360° |
| Tilt range | -45°～+45° |
| Pan speed | 0.01°～60°/S |
| Tilt speed | 0.01°/S ～30°/S |
| Accuracy | ±0.1° |
| Presets | 255 |
| Preset features | lens zooming and focusing preset |
| Cruising lines | 6 |
| Apple-skin scanning | 1 |
| Line-cruising | 1 |
Interface
| Interface type | RJ45.10 |
|---|---|
| Network speed | 10/100 Base-T adaptive |
| Integrated video output | RS422/485 |
Network
| Transport protocols | TCP/IP, UDP, IPv4/v6 |
|---|---|
| Application protocols | HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP |
| Standards / compliance | PSIA, ONVIF2.0, GB28181 |
Environment
| Operating temperature | -25°C~+60°C (-40°C optional) |
|---|---|
| Storage temperature | -45°C～70°C |
| Protection level | IP66 |
Power
| Power supply | AC/DC24V |
|---|---|
| Protection | anti-reverse connection protection |
Consumption
| Total consumption | 180W |
|---|
Weight
| Total weight | ≤25kg (include PTZ) |
|---|
Enhancements
| Image processing | SDE digital image processing |
|---|---|
| AGC | Supported |
| Digital amplification | 2X |
| Pseudo color count | 10 |
| Monochrome | B/W |
| Monochrome inverse | B/W inverse |
| Cross-border detection | Supported |
| Intrusion detection | Supported |
| Target tracking | Supported |
| Alarm threshold levels | 255 |
| Shot-point detection | Supported |
| Fire detection | Supported |
| Monitoring capability | Long range 24-hours monitoring |
| Image quality | Delicate and smooth images |
| Installation | Convenient for installation and application |
| Environmental effectiveness | Effective in all environments |
Applications
| Seaport and airport monitoring | Supported |
|---|---|
| Water system monitoring | Supported |
| Storage monitoring | Supported |
| China base security monitoring | Supported |
| Oilfield & oil depot security | Supported |
| Fire source prevention & monitoring | Supported |
| Ecological and environmental monitoring | Supported |
| Border and coastal defense | Supported |
| Urban security and anti-UAV applications | Supported |
| Highways and railways monitoring | Supported |
