Cb-000028

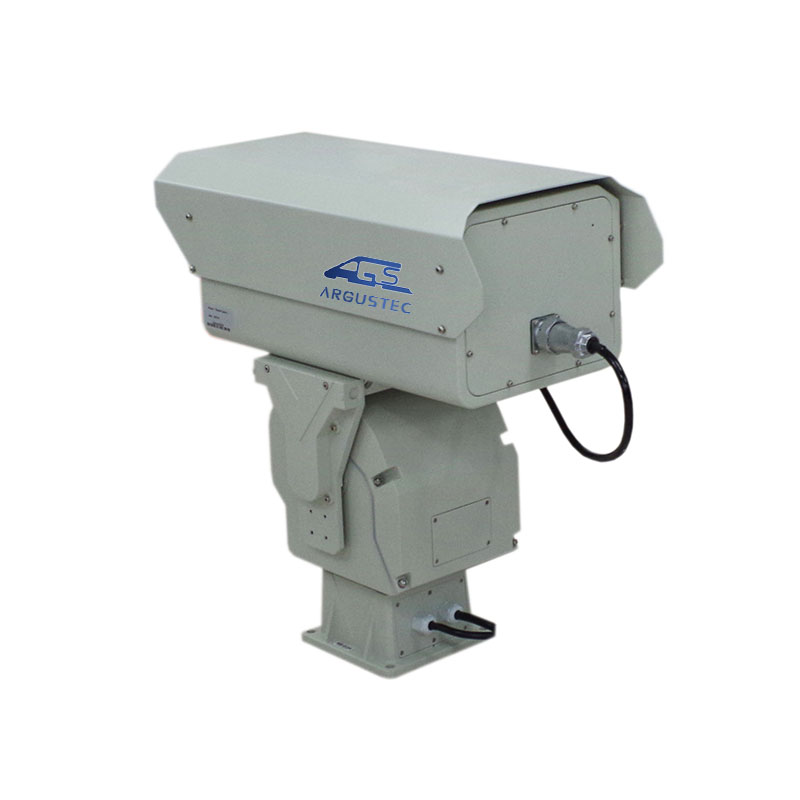

AGT-TC6511 Long Range Professional Thermal Imaging Camera for Anti-UAV
Model AGT-TC6511
The AGT-TC6511 is a long-range professional thermal imaging camera system for anti-UAV and perimeter security, featuring a 640×512 VOx un…
SKU Cb-000028 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Long range 24-hours monitoring
- Delicate and smooth images
- Convenient for installation and application
- 360 degree omni-directional pan-tilt
- Super-strong aluminum alloy with IP66
- Higher sensitivity
- Effective in all environments
- Small size and low weight
Overview
- VOx uncooled detector, 640×512 (384×288)
- NETD is less than 50mK (@25°C F1.0)
- SDE digital image processing, AGC, 2X digital amplification
- 10 pseudo color and B/W, B/W inverse
- Intelligent functions: cross-border/intrusion detection and target tracking
- 255 level alarm threshold can be setup
- Advanced algorithm support shot-point/fire detection and alert
- One integral aluminum alloy housing, water proof, IP66 weather proof, anti-dust
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
General
| Model | AGT-TC6511 |
|---|---|
| SMARTID | Cb-000028 |
| Product name | AGT-TC6511 Long Range Professional Thermal Imaging Camera for Anti-UAV |
Housing
| Material | Aluminum alloy |
|---|---|
| Construction | One integral aluminum alloy housing |
| IP rating | IP66 |
| Waterproof | Yes |
| Weatherproof | Yes |
| Dust proof | Yes |
Thermal
| Detector | 5th generation FPA VOx Detector |
|---|---|
| Cooling | Uncooled |
| Resolution | 640x512 pixel (384x288 pixel) |
| Spectral range | 7.5～14μm |
| NETD | 50mK (@25°C F1.0) |
Lens
| Focal length | 21 - 105mm |
|---|---|
| Field of view | 18.5°x13.9° - 3.7°x2.8° |
Detection
| Vehicle | 8600m |
|---|---|
| Human | 3400m |
Identification
| Vehicle | 2400m |
|---|---|
| Human | 900m |
PTZ
| Pan-tilt type | Omni-directional Pan-Tilt |
|---|---|
| Duty | 30kg CNC PT |
| Pan range | 0～360° |
| Tilt range | -45°～+45° |
| Pan speed | 0.01°～60°/S |
| Tilt speed | 0.01°/S ～30°/S |
| Accuracy | ±0.1° |
| Preset count | 255 |
| Preset features | Support lens zooming and focusing preset |
| Cruising lines | 6 |
| Apple-skin scanning | 1 |
| Line cruising | 1 |
Enhancements
| Monitoring capability | Long range 24-hours monitoring |
|---|---|
| Image quality | Delicate and smooth images |
| Installation | Convenient for installation and application |
| Sensitivity | Higher sensitivity |
| Environmental effectiveness | Effective in all environments |
| Size and weight | Small size and low weight |
| Image processing | SDE digital image processing |
| AGC | Yes |
| Digital amplification | 2X |
| Pseudo color modes | 10 |
| Black/white mode | Yes |
| Black/white inverse mode | Yes |
| Cross-border/intrusion detection | Yes |
| Target tracking | Yes |
| Alarm threshold levels | 255 |
| Fire detection | Shot-point/fire detection and alert |
Interface
| Ethernet connector | RJ45.10 |
|---|---|
| Data rate | 10/100 Base-T adaptive |
| Integrated video output | RS422/485 |
Network
| Transport protocols | TCP/IP, UDP, IPv4/v6 |
|---|---|
| Application protocols | HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP |
| Standards | PSIA, ONVIF2.0, GB28181 |
Environment
| Operating temperature | -25℃~+60℃(-40℃ Optional) |
|---|---|
| Storage temperature | -45℃～70℃ |
Power
| Power supply | AC/DC24V |
|---|---|
| Reverse connection protection | Yes |
Consumption
| Total consumption | 180W |
|---|
Weight
| Total weight | ≤25kg (include PTZ) |
|---|
