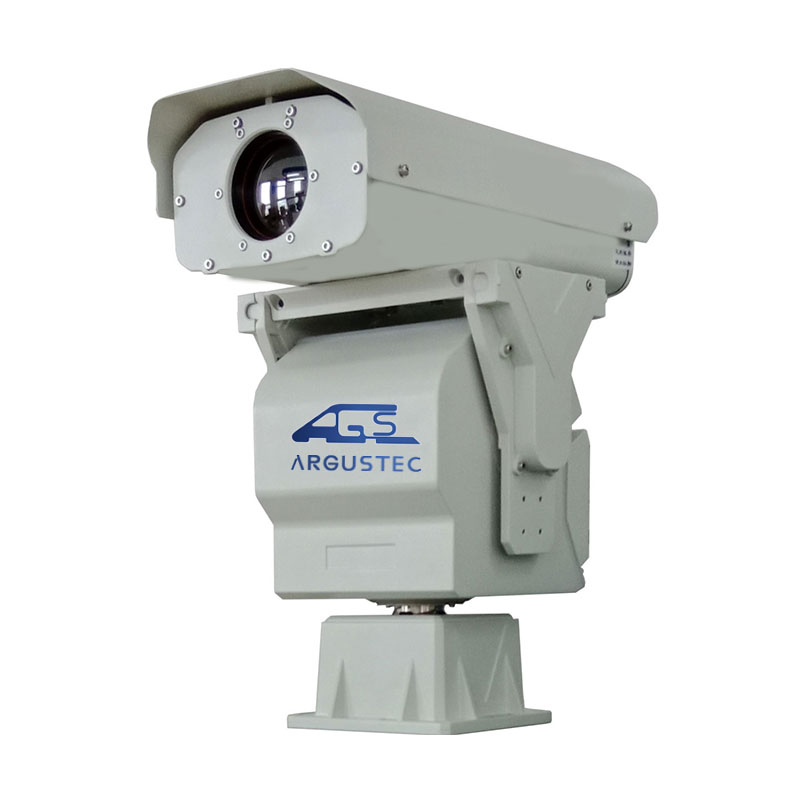

AGT-TC6307 Professional Thermal Imaging Camera for Border Surveillance
AGT-TC6307 Professional Thermal Imaging Camera for Border SurveillanceAGT-TC6307 Professional Thermal Imaging Camera for Border Surveillance

Cb-000032

AGT-TC6307 Professional Thermal Imaging Camera for Border Surveillance

Model AGT-TC6307

The AGT-TC6307 is a long-range thermal imaging PTZ camera for 24-hour border surveillance, featuring a 640×512 VOx uncooled detector, 25–…

Request quote View datasheet Download PDF Related solution

SKU Cb-000032 · Quoted & supported by Circuitbull® (Volls Global Inc)

Key Benefits

  • Long range 24-hours monitoring
  • Delicate and smooth images
  • Convenient for installation and application
  • 360 degree Omni-directional Pan-Tilt
  • Super-strong aluminum alloy with IP66
  • Higher sensitivity
  • Effective in all environments
  • Small size and low weight

Overview

  • VOx uncooled detector, 640×512 (384×288 optional)
  • NETD less than 50mK (@25°C F1.0)
  • SDE digital image processing, AGC, 2X digital amplification
  • 10 pseudo color and B/W, B/W inverse
  • Intelligent functions: cross-border/intrusion detection and target tracking
  • 255 level alarm threshold can be setup
  • Advanced algorithm support shot-point/fire detection and alert
  • One integral aluminum alloy housing, waterproof, IP66 weatherproof, anti-dust

Solutions

Seaport and airport monitoringWater system monitoringStorage monitoringBase security monitoringOilfield & oil depot securityFire source prevention & monitoringEcological and environmental monitoringBorder and coastal defenseUrban security and anti-UAV applicationsHighways and railways monitoring

Specifications

Technical specification

Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.

General

ModelAGT-TC6307
SMARTIDCb-000032
Product nameAGT-TC6307 Professional Thermal Imaging Camera for Border Surveillance

Housing

MaterialAluminum alloy
Sealing / IP ratingIP66
WaterproofYes
Weather proofYes
Anti-dustYes

Sensor

Sensor type5th generation FPA VOx Detector
Resolution640x512 pixel
Optional resolution384x288 pixel

Thermal

Spectral range7.5～14μm
NETD50mK (@25°C F1.0)

Lens

Focal length25 - 75mm

Optical

IFOV0.68 - 0.22mrad
Field of view24°x18° - 8°x6°

Detection

Vehicle range6500m
Human range2500m

Identification

Vehicle range1800m
Human range700m

PTZ

Load capacity30kg
MechanismCNC PT
Pan range0～360°
Tilt range-45°～+45°
Pan speed0.01°～60°/S
Tilt speed0.01°/S ～30°/S
Accuracy±0.1°
Presets255
Lens zooming presetSupported
Focusing presetSupported
Cruising lines6
Apple-skin scanning1
Line cruising1

Enhancements

Image processingSDE digital image processing
AGCSupported
Digital amplification2X
Pseudo color modes10
B/WSupported
B/W inverseSupported
Cross-border detectionSupported
Intrusion detectionSupported
Target trackingSupported
Alarm threshold levels255
Shot-point detectionSupported
Fire detection and alertSupported

Network

Network interfaceRJ45.10, 10/100 Base-T adaptive
Video outputRS422/485 integrated
TCP/IPSupported
UDPSupported
IPv4/v6Supported
HTTPSupported
RTPSupported
RTSPSupported
NFSSupported
DHCPSupported
NTPSupported
SMTPSupported
SNMPv1/v2c/v3
UPnPSupported
PPPoESupported
DNSSupported
FTPSupported
PSIASupported
ONVIF2.0
GB28181Supported

Environment

Operating temperature-25°C~+60°C
Optional operating temperature-40°C
Storage temperature-45°C～70°C
Protection levelIP66

Power

Power supplyAC/DC24V
Anti-reverse connection protectionSupported

Consumption

Total consumption180W

Weight

Total weight≤25kg (include PTZ)
