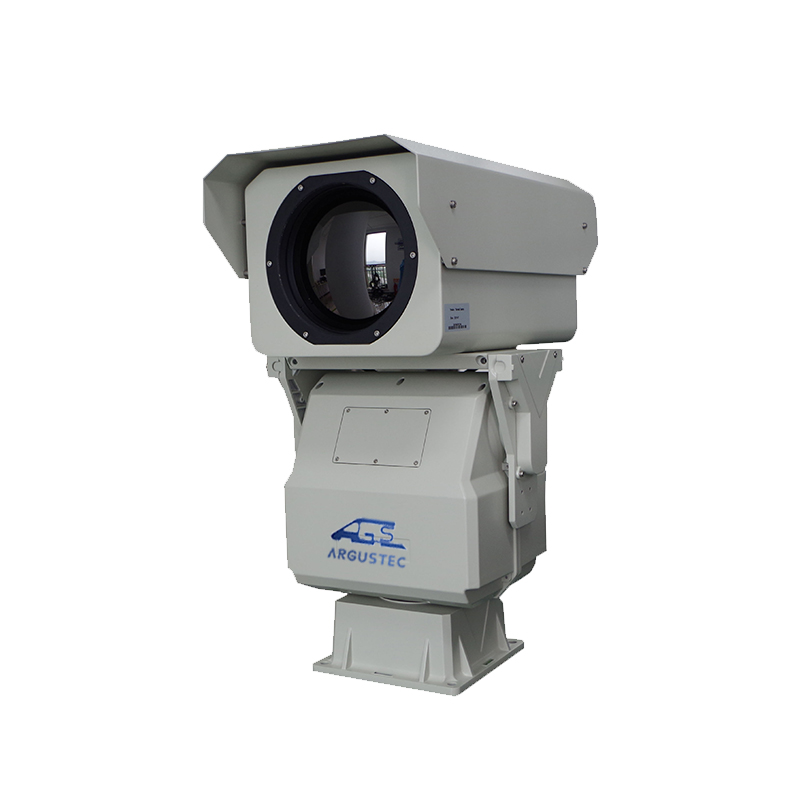

AGT-TC61030 Long Range Infrared Thermal Imaging Camera for Traffic
Model AGT-TC61030
The AGT-TC61030 is a long-range thermal imaging camera featuring a 640×512 uncooled VOx detector, 30–300mm continuous 10× optical zoom, a…
SKU Cb-000031 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Latest uncooled IR technology with continuous IR optical zoom
- 640×512 resolution with advanced digital circuit and image processing algorithm
- 10× optical zoom lens with 18 km detection distance for seeking and watching
- Integral aluminum alloy housing with IP66 sealing for harsh outdoor conditions
- Penetrates fog, dirt, rain, and snow for 24-hour imaging
Overview
- NETD 50 mK enhances imaging details in foggy, rainy, or snowy weather
- Unique AS+DOE optical design and 3CAM high-precision optomechanical design for large-scale seeking and long-distance watching
- Non-uniform image correction technology with stable working temperature and no TEC, delivering good image uniformity and dynamic range
- SDE digital image processing with low noise, 10 pseudo-color palettes, and B/W switch
- Digital control PT with 360° continuous rotation, no dead corners, stable operation, and small dithering
- Integral aluminum alloy housing with IP66 weatherproof, waterproof, and anti-dust protection
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
General
| Product name | AGT-TC61030 Long Range Infrared Thermal Imaging Camera for Traffic |
|---|---|
| Model | AGT-TC61030 |
| SMARTID | Cb-000031 |
Sensor
| Detector type | 5th generation UFPA VOx Detector |
|---|---|
| Resolution | 640×512 |
| NETD | 50 mK (@25℃ F1.0) |
| Spectral range | 12 μm |
Optical
| Focal length | 30～300 mm |
|---|---|
| Optical zoom | 10× |
| Field of view | 1.5°×1.2° ~ 14.6°×11.7° |
| IFOV | 0.08～0.85 mrad |
Lens
| Zoom / focus | Motorized zoom and focus |
|---|---|
| Auto focus | Optional |
| Optical design | AS+DOE advanced optical design |
| Precision design | 3CAM high precision design |
Thermal image processing
| Startup time | <4 s |
|---|---|
| Image processing | SDE digital image processing |
| Pseudo color modes | 10 pseudo color and B/W, B/W inverse |
| AGC | AGC |
| Digital amplification | 1~8× |
Housing
| Material | Aluminum alloy |
|---|---|
| Structure | Integral single window design |
| Surface coating | PTA coating, anti sea water corrosion |
| Sealing / IP rating | IP66 |
| Temperature controller | Built-in |
| Connector | Aviation waterproof connector |
PTZ (Optional)
| Load capacity | 50 kg digital PT |
|---|---|
| Pan range | 0～360° |
| Tilt range | -45°～+45° |
| Speed | 0.01～30°/S |
| Speed control | High precision variable speed control and locking |
| Presets | 80 |
| Preset memory | Lens zoom and focus memory |
| Scanning speed | 0～30°/S |
| Scanning function | Apple peel scanning function |
| Protocols | Pelco-P, Pelco-D |
| Baud rates | 2400/4800/9600/19200 bps optional |
Power Consumption
| Minimum power | 40 W (PT included) |
|---|---|
| Maximum power | 120 W (PT included) |
Weight
| Total weight | ≤40 kg (PT included) |
|---|
Interface
| RS-485 | RS-485 |
|---|---|
| RS-485 protocol | PELCO D |
| RS-485 baud rate | 2400 bps |
| RS-232 | Optional |
| Remote OSD | Remote OSD setting |
| Video output | PAL/NTSC |
| Power input | AC24V (DC12V option) |
| Connector | Waterproof connector |
Environment
| Operating temperature | -25℃～+55℃ (-40℃ optional) |
|---|---|
| Storage temperature | -35℃～+75℃ |
| Humidity | <90% |
| Anti-shock | 0.2g (GB/T15211—2013 5.4 harshest level 2 standard) |
| Anti-resistance | 15g (GB/T15211—2013 5.3 harshest level 3 standard) |
| Anti-salt corrosion | PH6.5～7.2, continuous spraying 48 hours |
| Protection rate | IP66 |
Detection
| Detection distance | 18 km |
|---|
