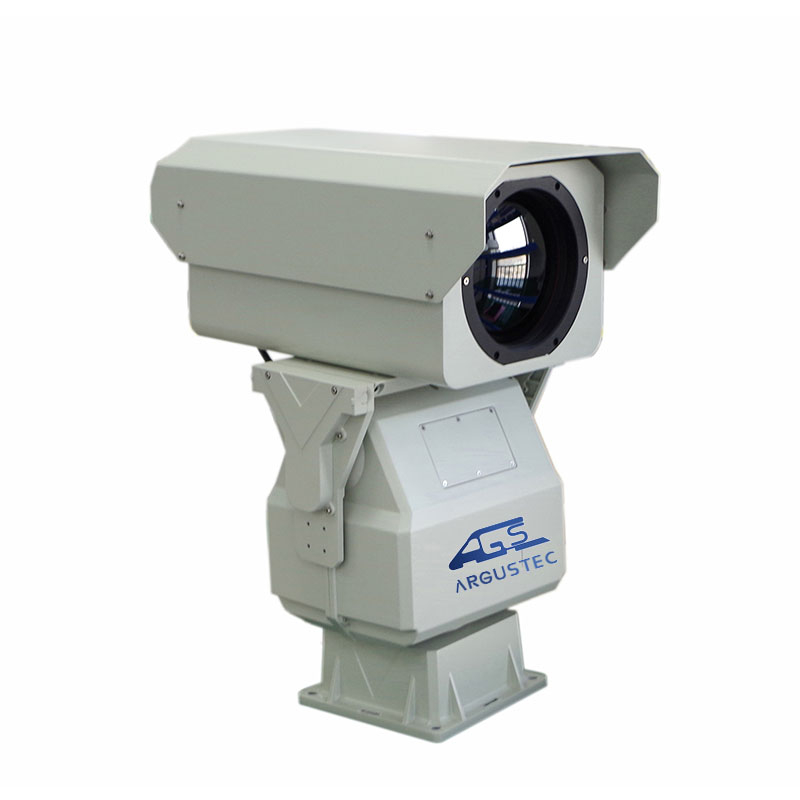

AGT-TC61023 Distance High Speed Thermal Imaging Camera for Border Surveillance
AGT-TC61023 Distance High Speed Thermal Imaging Camera for Border SurveillanceAGT-TC61023 Distance High Speed Thermal Imaging Camera for Border Surveillance

Cb-000015

AGT-TC61023 Distance High Speed Thermal Imaging Camera for Border Surveillance

Model AGT-TC61023

The AGT-TC61023 is a long-range high-speed thermal imaging PTZ camera for 24-hour border surveillance, featuring a 640×512 VOx thermal se…

Request quote View datasheet Download PDF Related solution

SKU Cb-000015 · Quoted & supported by Circuitbull® (Volls Global Inc)

Key Benefits

  • Long range 24-hour monitoring
  • Delicate and smooth thermal images
  • Convenient for installation and application
  • 360° omni-directional pan-tilt
  • Super-strong aluminum alloy with IP66 protection
  • Higher sensitivity for low-contrast targets
  • Effective operation in all environments
  • Small size and low weight

Overview

  • VOx uncooled detector with 640×512 pixel resolution (1280×1024 optional)
  • NETD ≤ 50 mK (@25℃ F1.0)
  • SDE digital image processing with AGC and 2× digital amplification
  • 10 pseudo-color modes plus B/W and B/W inverse
  • Intelligent functions: cross-border/intrusion detection and target tracking
  • 255-level alarm threshold configuration
  • Advanced algorithm supports shot-point/fire detection and alert
  • One-piece integral aluminum alloy housing, waterproof, IP66 weatherproof, anti-dust

Solutions

Seaport and airport monitoringWater system monitoringStorage and warehouse monitoringMilitary base security monitoringOilfield and oil depot securityFire source prevention and monitoringEcological and environmental monitoringBorder and coastal defenseUrban security and anti-UAV applicationsHighway and railway monitoring

Specifications

Technical specification

Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.

General

ModelAGT-TC61023
SMARTIDCb-000015
Product NameAGT-TC61023 Distance High Speed Thermal Imaging Camera for Border Surveillance

Housing

MaterialAluminum alloy
IP RatingIP66

Thermal

Sensor Type5th generation FPA VOx detector
Resolution640×512 pixel
Optional Resolution1280×1024 pixel
Spectral Range7.5～14 μm
NETD50 mK (@25℃ F1.0)

Optical

Focal Length23 - 230 mm
Field of View17°×12.6°～1.7°×1.3°

Detection

Vehicle17400 m
Human6800 m

Identification

Vehicle4800 m
Human1800 m

PTZ

Load Capacity50 kg
ConstructionCNC PT
Pan Range0～360°
Tilt Range-45°～+45°
Pan Speed0.01°～30°/s
Tilt Speed0.01°/s～15°/s
Positioning Accuracy±0.1°
Preset Count255
Preset Featuressupport lens zooming and focusing preset
Cruising Lines6
Apple-skin Scanning1
Line-cruising1

Enhancements

Image ProcessingSDE digital image processing, AGC, 2X digital amplification
Color Modes10 pseudo color and B/W, B/W inverse
Intelligent Functionscross-border/intrusion detection and target tracking
Alarm Threshold Levels255
Fire Detectionshot-point/fire detection and alert

Network

Transport ProtocolsTCP/IP, UDP, IPv4/v6
Application ProtocolsHTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP
Video StandardsPSIA, ONVIF2.0, GB28181

Interface

EthernetRJ45.10, 10/100 Base-T adaptive
Serial Interfaceintegrated video output RS422/485

Environment

Operating Temperature-25℃～+60℃
Optional Operating Temperature-40℃
Storage Temperature-45℃～70℃
IP RatingIP66

Power

Consumption180 W
SupplyAC/DC 24 V, anti-reverse connection protection

Weight

Total≤ 35 kg (include PTZ)
