Cb-000040

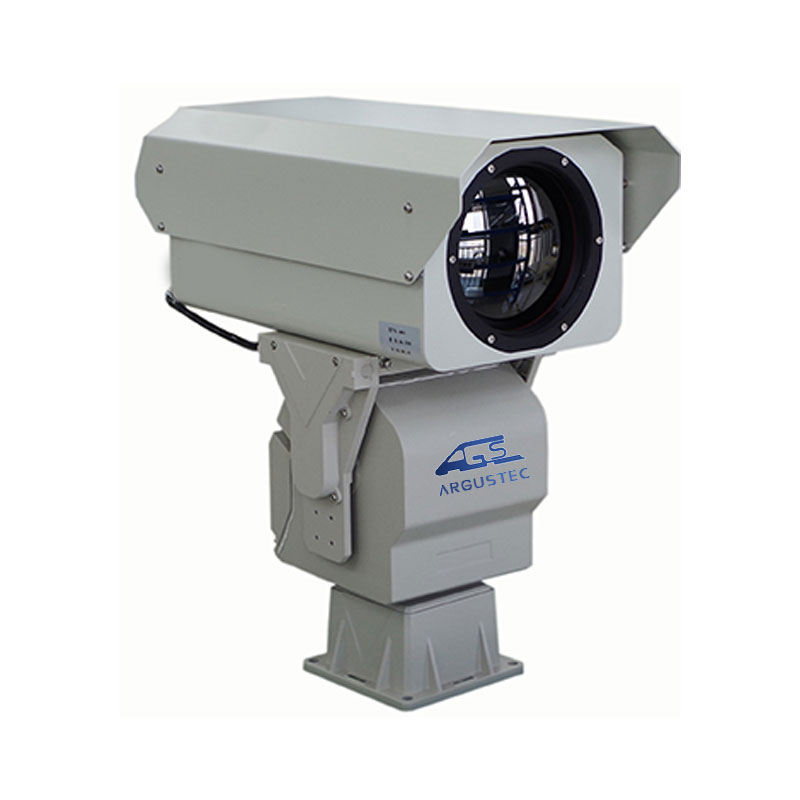

AGT-TC12618C Waterproof PTZ Thermal Imaging Camera for Aquaculture
Model AGT-TC12618C
The AGT-TC12618C is an ultra-long-range continuous zoom thermal imaging camera with 1280×1024 resolution, IP66 waterproof housing, and op…
SKU Cb-000040 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Ultra-long-range continuous zoom with 16.4 km vehicle detection
- 1280×1024 uncooled VOx thermal resolution with 50 mK NETD
- All-weather imaging through fog, dirt, rain, and snow
- IP66 integral aluminum alloy housing with anti-seawater corrosion coating
- 360° continuous rotation PTZ with high-precision variable speed control
- Advanced AS+DOE optics and 3CAM high-precision optomechanical design
- SDE digital image processing with 10 pseudo-color and B/W modes
- Intelligent video analytics and remote maintenance capabilities
Overview
- NETD 50 mK enhances imaging details in foggy, rainy, and snowy conditions
- AS+DOE optical design and 3CAM high-precision optomechanics suit large-scale seeking and long-distance watching
- Non-uniform image correction technology with stable working temperature and no TEC
- SDE digital image processing delivers low image noise with 10 pseudo colors and B/W switch
- Digital control PT enables 360° continuous rotation with no dead corner and small dithering
- Integral aluminum alloy housing rated IP66 for waterproof and dustproof outdoor use
Solutions
Aquaculture monitoring and perimeter protectionCoastal and maritime surveillanceLong-range border and critical infrastructure securityAll-weather outdoor surveillance and search
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Detection
| Vehicle | 16400m |
|---|---|
| Human | 5800m |
| Vehicle | 4200m |
| Human | 1900m |
Sensor
| NETD | 50mK (@25℃ F1.0) |
|---|
Lens
| IFOV | 0.067~0.4mrad |
|---|
Housing
| Material | Aluminum alloy integral single-window housing |
|---|---|
| Coating | PTA coating anti seawater corrosion |
| Sealing / IP rating | IP66 |
| Temperature control | built-in temperature controller |
| Connector | aviation waterproof connector |
PTZ
| Load capacity | 50kg load digital PT; pan 0~360°, tilt -45°~+45°; speed |
|---|---|
| Speed | 01~30°/S; 80 presets with lens zoom/focus memory; variable speed scanning 0~30°/S; apple peel scanning |
Power
| Consumption (PT included) | min 40W, max 120W |
|---|---|
| weight (PT included) | ≤45kg |
Environment
| Operating Temperature | -25℃~+55℃ (-40℃ optional) |
|---|---|
| Storage Temperature | -35℃~+75℃ |
| Humidity | <90% |
| Lightning Protection | Power 4000V, signal 2000V |
| Protection Rating | IP66 |
