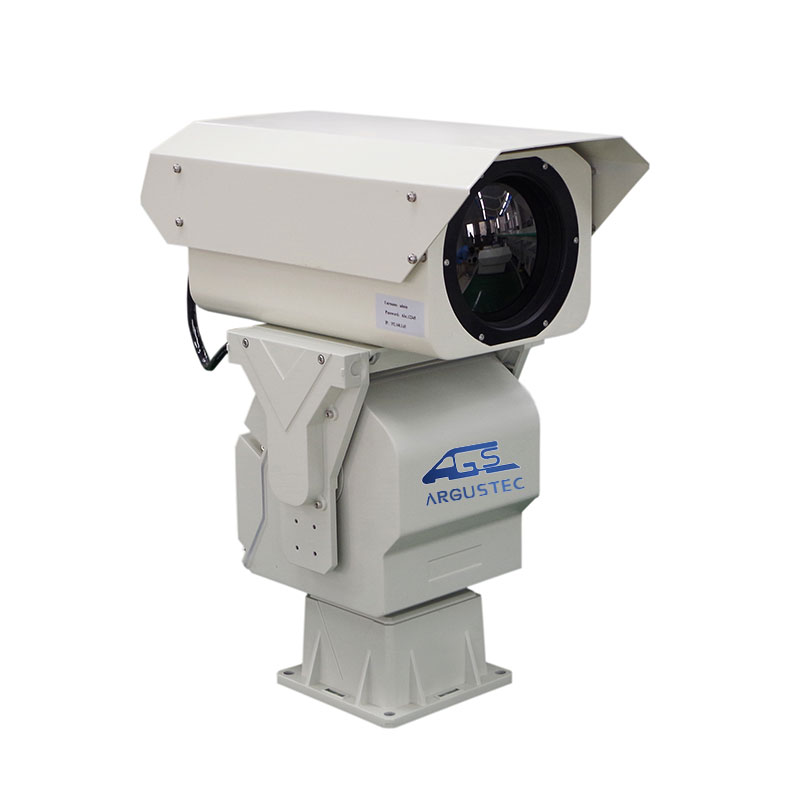

AGT-TC12110C Long Range Thermal Imaging Camera for Marine Mounting
Model AGT-TC12110C
The AGT-TC12110C is a long-range uncooled thermal imaging camera with 1280×1024 resolution, a 100 mm lens, and IP66 marine-grade housing…
SKU Cb-000023 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Ultra-long range thermal imaging based on the latest uncooled IR technology
- 1280×1024 resolution with advanced digital circuit and image processing algorithm
- 100 mm thermal lens with detection distance up to 9 km for seeking and watching
- Integral aluminum alloy housing with IP66 sealing for harsh outdoor and marine conditions
- High-sensitivity FPA sensor penetrates fog, dirt, rain, and snow for 24-hour imaging
Overview
- NETD 50 mK enhances imaging details even in foggy, rainy, or snowy weather
- Non-uniform image correction technology with stable working temperature without TEC
- SDE digital image processing with no image noise, 10 pseudo color modes, and B/W switch
- Digital control PT with 360° continuous rotation, no dead corner, stable operation, and small dithering
- Integral aluminum alloy housing, weatherproof IP66, waterproof, and anti-dust
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
General
| Product name | AGT-TC12110C Long Range Thermal Imaging Camera for Marine Mounting |
|---|---|
| Model | AGT-TC12110C |
| SMARTID | Cb-000023 |
| Mounting type | Marine |
Detection
| Vehicle range | 8600 m |
|---|---|
| Human range | 3400 m |
Recognition
| Vehicle range | 2400 m |
|---|---|
| Human range | 1000 m |
Sensor
| Detector type | 5th generation UFPA Vox detector |
|---|---|
| Resolution | 1280×1024 |
| NETD | 50 mK (@25℃ F1.0) |
| Spectral range | 12 μm |
Lens
| Focal length | 100 mm |
|---|---|
| FOV | 8.8°×7° |
| IFOV | 0.12 mrad |
| Focus type | Electric focus, auto focus |
| Optical design | AS+DOE advanced optical design |
| Infrared transmission | High |
Enhancements
| Image processing | SDE digital image processing |
|---|---|
| Pseudo color | 10 pseudo color and B/W, B/W inverse |
| AGC | AGC |
| Digital zoom | 1-8X continuous digital amplification |
Housing
| Material | Aluminum alloy |
|---|---|
| Waterproof | Yes |
| Structure | Integral single window design |
| Coating | PTA coating |
| Corrosion resistance | Anti sea water corrosion |
| Sealing / IP rating | IP66 |
| Temperature controller | Built-in |
| Thermal balance design | Yes |
| Connector | Aviation waterproof connector |
PTZ
| Load | 30 kg |
|---|---|
| Pan range | 0～360° |
| Tilt range | -45°～+45° |
| Pan/tilt speed | 0.01～30°/S |
| Presets | 80 |
| Scanning speed | 0～30°/S |
| Features | Support lens zoom and focus memory, apple peel scanning function |
Consumption
| Min power | min. 40 W (PT included) |
|---|---|
| Max power | max. 120 W (PT included) |
Weight
| Total weight | ≤45 kg (PT included) |
|---|
Interface
| Ethernet | RJ45 |
|---|---|
| OSD setting | Remote OSD setting |
| Video output | PAL/NTSC |
| Power input | AC/DC24 V |
| Reverse connection protection | Anti-reverse connection protection |
| Connector | Waterproof connector |
Environment
| Working temperature | -25℃～+55℃ (-40℃ optional) |
|---|---|
| Storage temperature | -35℃～+75℃ |
| Humidity | <90% |
| Anti-shock | 0.2 g (GB/T15211—2013 5.4 harshest level 2) |
| Anti-resistance | 15 g (GB/T15211—2013 5.3 harshest level 3) |
| Anti-lightening power | 4000 V |
| Anti-lightening signal | 2000 V |
| Anti-salty pH | pH 6.5～7.2 |
| Anti-salty spray duration | 48 h |
| Protection rate | IP66 |
