Cb-000044

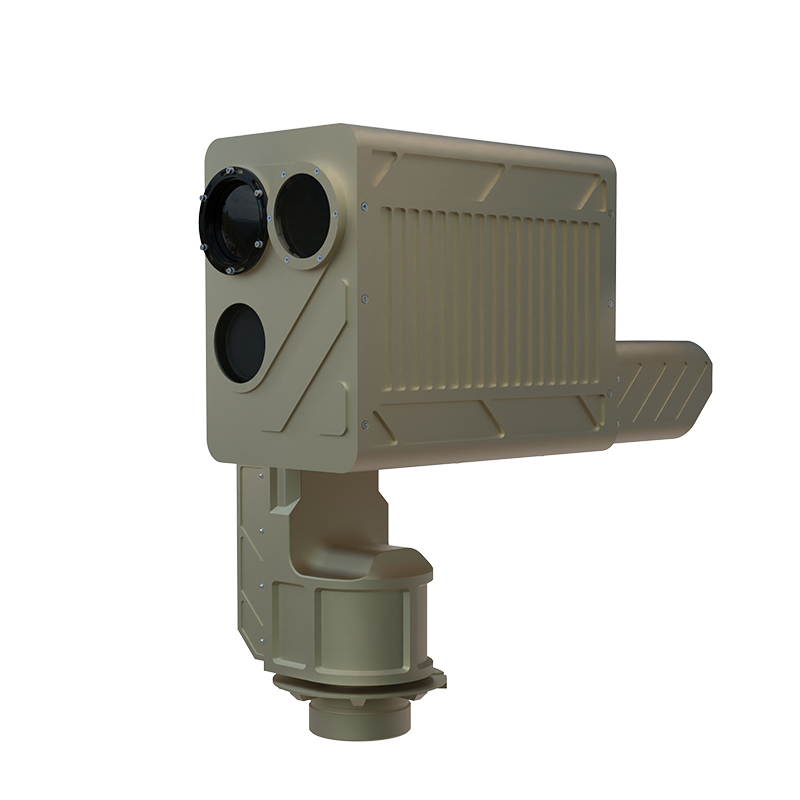

AGT-RJH2000 Airport Bird Deterrence Lightweight Laser Jamming Interception System
Model AGT-RJH2000
The AGT-RJH2000 is a lightweight, modular laser jamming interception system designed to detect, track, and physically neutralize small dr…
SKU Cb-000044 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Miniaturized modular design for rapid deployment, relocation, and setup
- Dual visible-light and thermal imaging for day/night target detection and tracking
- High-precision tracking down to ≤25 μrad and PTZ accuracy ≤0.5 mrad
- Integrated 1535 nm laser rangefinder with <5 km range and ±1 m accuracy
- 808 nm laser illuminator with automatic/manual control and ≥1500 m illumination distance
- Rugged IP65 enclosure and wide -20 °C to +50 °C operating temperature range
- Low power consumption ≤400 W and lightweight ≤17 kg for portable operation
Overview
- Counter-small-UAS laser jamming and physical interception system
- Detects, tracks, and engages drone targets in protected airspace
- Prevents reconnaissance and kamikaze-style attacks via optoelectronic jamming
- Suitable for mobile deployment and quick setup at airports and critical sites
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
General
| Product name | AGT-RJH2000 Airport Bird Deterrence Lightweight Laser Jamming Interception System |
|---|---|
| Model | AGT-RJH2000 |
| SMARTID | Cb-000044 |
| Maximum treatment time | 200s (battery powered) |
| Working time | 10-15s |
| Resting time | 30-60s |
| Treatment range | 50m~300m (DJI Phantom 4) |
| Tracking accuracy | ≤25μrad |
| Description | The lightweight laser jamming interception system is mainly aimed at small drone targets, completing the physical interception of threat targets in the protected airspace, and the optoelectronic jamming to prevent small drones from conducting reconnaissance and "suicide" attacks. It adopts a miniaturized and modular design approach, which can be quickly moved, deployed and set up for use. |
Visible Light
| Sensor type | 1'' progressive scan CMOS |
|---|---|
| Resolution | 2048 × 2048 |
| Sensor size | 11.26 mm × 11.26 mm |
| Pixel size | 5.5 μm × 5.5 μm |
| Focal length | 500mm |
| Field of view | 0.3° × 0.3° |
Thermal Imaging
| Detector type | uncooled Vox |
|---|---|
| Pixel size | 12μm |
| Resolution | 640 × 512 |
| Spectral range | 8～14μm |
| NETD | ≤40mK@F1.0,300K |
| Focal length | 60mm |
| Field of view | 7.3° × 5.5° |
| Spatial resolution | 0.2mrad |
| Digital zoom | 1×/2×/3×/4× |
| False color | White hot/Black hot/Rainbow/Iron red/Lava/Sky/Purple orange/Gradual red/Gradual green/Gradual blue |
| Image processing | Non-uniformity correction/digital filtering noise reduction/digital detail enhancement |
Laser
| LRF wavelength | 1535nm |
|---|---|
| LRF light source type | Diode pump |
| LRF distance measurement capability | <5km |
| LRF distance measurement accuracy | ±1m |
| LRF operating frequency | 1Hz/5Hz/10Hz |
| LRF accuracy rate | 98% |
| Illuminator wavelength | 808 ± 5nm |
| Illuminator power | 11 ± 1W |
| Illumination angle | 1°～65° |
| Control | Automatic/Manual |
| Illumination distance | ≥1500m |
PTZ
| Horizontal speed | 0.01°～50°/s |
|---|---|
| Horizontal angle | -170°～+170° |
| Vertical angle | -20°～+80° |
| Tracking accuracy | ≤0.5mrad |
Interface
| RS422 | 1× |
|---|---|
| CAN | 1× |
| RJ45 | 1× |
Power
| Input voltage | DC20V～DC40V |
|---|
Consumption
| Power consumption | ≤400W |
|---|
Housing
| IP rating | IP65 |
|---|
Environment
| Operating temperature | -20℃～+50℃ |
|---|---|
| Storage temperature | -25℃～+55℃ |
Dimensions
| Device dimensions | <500mm × 400mm × 550mm |
|---|---|
| Laser dimensions | <500mm × 360mm × 280mm |
Weight
| Device weight | ≤17Kg |
|---|---|
| Laser weight (including battery) | ≤17Kg |
