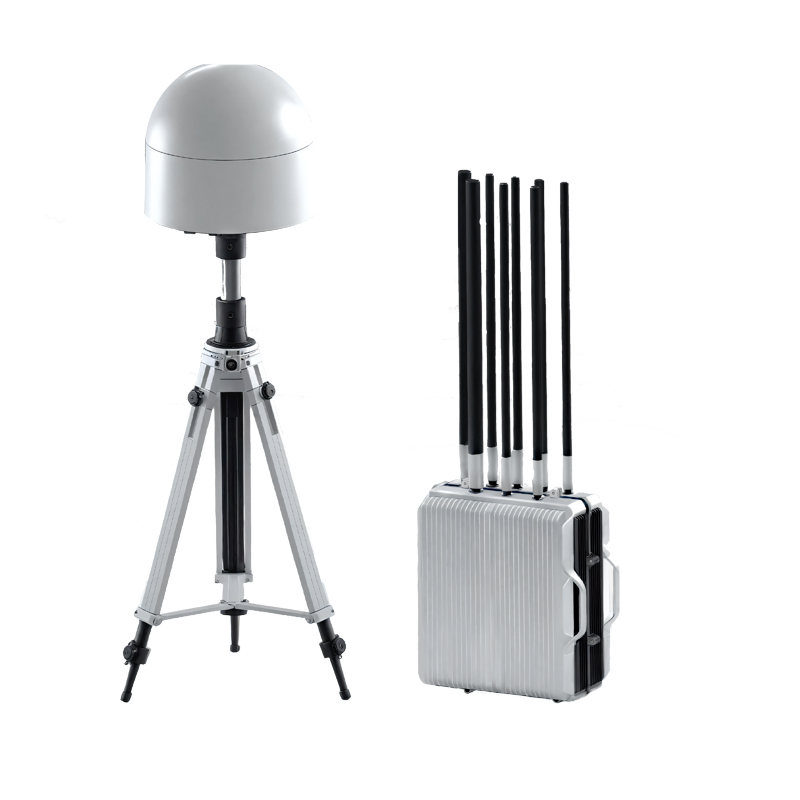

AGT-RCD-YT Airport Bird Deterrence Anti-Drone Jammer System
Model AGT-RCD-YT
The AGT-RCD-YT is an integrated drone detection and countermeasure system that detects, direction-finds, identifies and jams UAV control…
SKU Cb-000052 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Latest DDS core algorithm delivers powerful FM and FPV drone jamming.
- 70 MHz–6 GHz detection coverage with a complete drone model library.
- Eight common and eight customizable strike frequencies covering 400 MHz–5.8 GHz.
- Flexible networking allows units to operate separately or paired with other detection/strike equipment.
- 1+N platform linkage integrates radar, navigation and observation assets into a unified low-altitude defense platform.
- AI self-learning drone signal acquisition module autonomously builds and updates feature libraries.
- Rugged aviation-grade aluminum enclosure, operating temperature -40 °C to +60 °C.
- Customizable color and language.
Overview
- The integrated drone detection and countermeasure device detects, finds the direction of and analyzes drone image-transmission and control-link signals, then emits targeted interference to achieve effective detection, direction finding, identification, positioning and jamming of drones and remote controllers.
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
General
| Product name | AGT-RCD-YT Airport Bird Deterrence Anti-Drone Jammer System |
|---|---|
| Model | AGT-RCD-YT |
| SMARTID | Cb-000052 |
| Continuous operation | 24 hours/day |
Housing
| Material | Aviation aluminum alloy |
|---|---|
| Sealing / IP rating | IP66 |
Detection
| Frequency range | 70MHz-6GHz full band |
|---|---|
| Key detection frequencies | 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Detection distance | <5km |
| Reconnaissance airspace | 360° full airspace |
| Direction measuring accuracy (follow) | ≤10 degrees |
| Direction measuring accuracy (hover) | ≤3 degrees |
Counteraction
| Defense frequency bands | 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
|---|---|
| Expandable defense band range | 400MHz-6GHz full band |
| Counteraction airspace | 360° full airspace |
| Counteraction distance | 3km |
Dimensions
| Radial dimensions | 666mm × 400mm (height, radius) |
|---|---|
| Rectangular dimensions | 500mm × 460mm × 233mm (length × width × height) |
Weight
| Weight component 1 | 15kg |
|---|---|
| Weight component 2 | 25kg |
Environment
| Operating temperature | -40℃~70℃ |
|---|
Enhancements
| Jamming algorithm | Latest DDS core algorithm provides powerful FM and FPV drone jamming |
|---|---|
| Detection frequency coverage | 70MHz-6GHz |
| Drone model library | Complete drone model library |
| Common strike frequencies | 8 common frequencies |
| Customizable strike frequencies | 8 customized frequencies, covering 400MHz-5.8GHz |
| Networking platform | Can be separated and paired with other detection and strike equipment for coordinated operations |
| Equipment linkage | 1+N efficient equipment linkage access to low-altitude defense platform, integrates radar, navigation equipment and observation |
| AI self-learning | Equipped with drone signal acquisition module, can autonomously learn and define feature libraries |
| Customization | Customized color and language |
