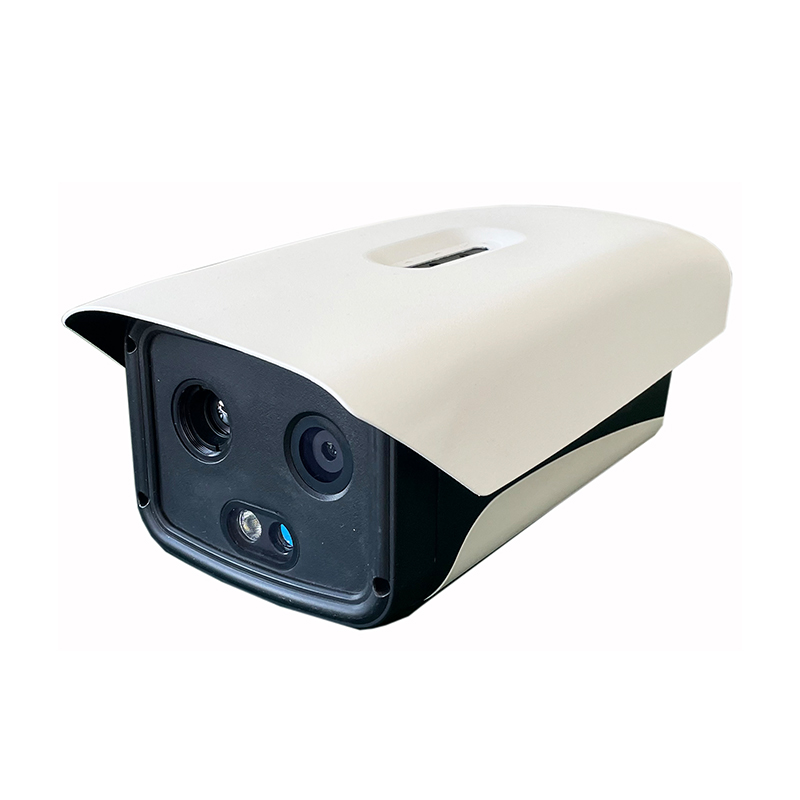

AGT-KMS6300-35 Multi Sensor Thermal Bullet Camera
AGT-KMS6300-35 Multi Sensor Thermal Bullet CameraAGT-KMS6300-35 Multi Sensor Thermal Bullet Camera

Cb-000001

AGT-KMS6300-35 Multi Sensor Thermal Bullet Camera

Model AGT-KMS6300-35

The AGT-KMS6300-35 is a multi-sensor thermal bullet camera integrating a 640×512 VOx thermal imager, 2 MP visible CMOS, IR illuminator, a…

Request quote View datasheet Download PDF Related solution

SKU Cb-000001 · Quoted & supported by Circuitbull® (Volls Global Inc)

Key Benefits

  • Sixth-generation uncooled focal plane VOx detector
  • AS optical zooming lens and high-precision optomechanical design for high image quality
  • Integrates infrared thermal imaging, HD visible light, IR illuminator, intelligent analytics, and audio-visual alarm in one compact unit
  • Full-HD color/black-and-white dual-mode low-light CMOS sensor in a compact, lightweight package
  • Non-uniform image correction technology with stable operational temperature and no TEC, delivering good uniformity and dynamic range
  • Fire alarm function with built-in 1/1 alarm input/output
  • Tripwire analytics and moving-object analytics
  • IP67-rated for severe environments

Overview

  • Multi-sensor platform combining thermal, visible, IR illumination, intelligent analytics, and alarm I/O
  • 640×512 thermal resolution with 35 mm lens and ≤40 mK NETD
  • 2 MP visible imaging with 0.0001 lux low-light sensitivity
  • H.264/H.265 video compression with 10/100 Ethernet and ONVIF Profile S & G interoperability
  • Rugged aluminum-alloy IP67 housing rated for -40 °C to +60 °C operation

Solutions

Substations and chemical plantsRailway stationsPassenger stationsSubway stationsAirports

Specifications

Technical specification

Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.

General

Product NameAGT-KMS6300-35 Multi Sensor Thermal Bullet Camera
ModelAGT-KMS6300-35
SMARTIDCb-000001

Thermal

Detector TypeUncooled focal plane VOx detector
Detector GenerationSixth-generation
Resolution640 × 512
Pixel Size12 μm
Thermal Sensitivity (NETD)≤40 mK
Spectral Range8 ~ 14 μm
Focal Length35 mm
Horizontal Field of View12.5°
Vertical Field of View10°
CoolingWithout TEC
Image CorrectionNon-uniform image correction

Visible

Image Sensor1/2.8" CMOS
Effective Pixels2 MP
Resolution1920 × 1080
Min. Illumination (Color)0.0001 Lux
Min. Illumination (B/W)0.0001 Lux
Min. Illumination (IR On)0 Lux (IR on)
Horizontal Angle of View36°
Vertical Angle of View20°
Focal Length8 mm

IR

IR On/Off ControlAuto / Manual
IR Illumination Range≥ 90 m

Detection

Vehicle1,200 m (2.3 m × 2.3 m)
Human600 m (1.8 m × 0.6 m)

Recognition

Vehicle600 m (2.3 m × 2.3 m)
Human400 m (1.8 m × 0.6 m)

Enhancements

Fire AlarmSupported
Cold/Hot Spot TraceSupported
Object ClarificationSupported
TripwireSupported
IntrusionSupported
Entry/Exit DetectionSupported
Moving Object AnalyticsSupported

Network

EthernetRJ-45 (10/100Base-T)
ONVIF Profile SSupported
ONVIF Profile GSupported
APISupported
Internet ExplorerIE8+
ChromeChrome 42+
FirefoxFirefox 42+
SafariSafari 10+
Smart PSSSupported
DSSSupported
AndroidSupported
iOSSupported
HTTPSupported
HTTPSSupported
TCPSupported
ARPSupported
RTSPSupported
RTPSupported
UDPSupported
ICMPSupported
RTCPSupported
SMTPSupported
FTPSupported
DHCPSupported
DNSSupported
DDNSSupported
PPPoESupported
IPv4/v6IPv4/v6
SNMPSupported
QoSSupported
UPnPSupported
NTPSupported
H.264Supported
H.265Supported

Interface

Video Interface1 RJ45
Audio In1
Audio Out1
RS485Support
Alarm In1
Alarm Out1

Power

Power SupplyDC 12V
Over-voltage Protection≤ 6 kV

Consumption

Power Consumption≤ 12W

Environment

Operating Temperature-40 °C ~ +60 °C

Housing

MaterialAluminum alloy
Sealing / IP RatingIP67

Dimensions

Length261.7 mm
Width139.5 mm
Height103 mm

Weight

Net Weight1.7 kg
