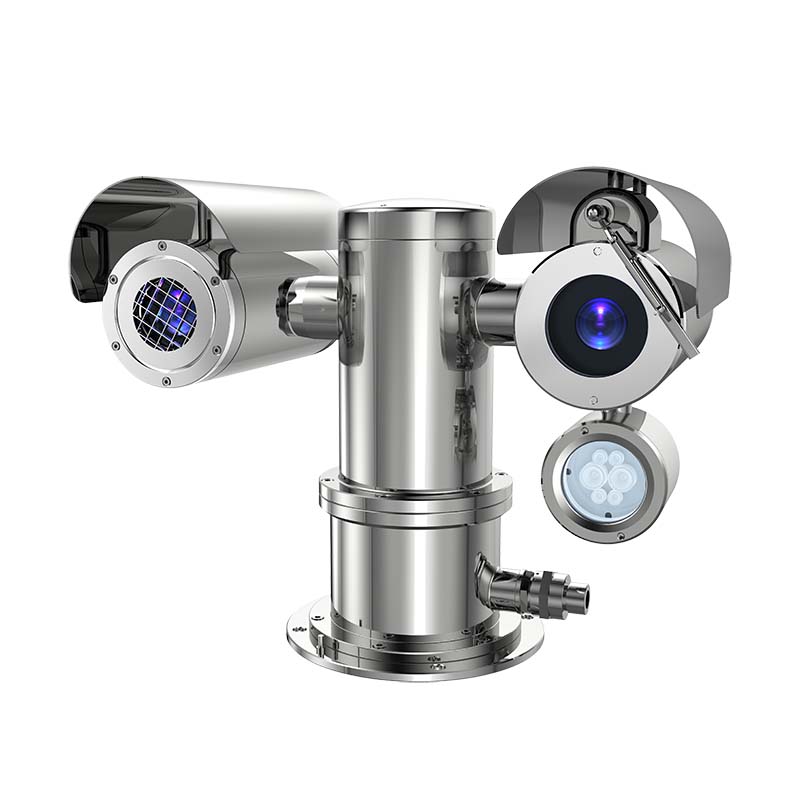

AGT-EP-HTRC6200-30 Explosion-proof Dual Sensor Thermal Imaging Camera
Model AGT-EP-HTRC6200-30
The AGT-EP-HTRC6200-30 is an explosion-proof dual-sensor thermal imaging camera with a 640×512 VOx uncooled detector, 30 mm thermal lens,…
SKU Cb-000059 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Long-range 24-hour monitoring
- Delicate and smooth images
- Convenient installation and application
- 360° omnidirectional pan-tilt
- Super-strong aluminum alloy with IP68
- Higher sensitivity
- Effective in all environments
Overview
- VOx uncooled detector, 640×512
- NETD ≤50 mK (@25°C, F1.0)
- SDE digital image processing, AGC, 2× digital amplification
- 16 pseudo-color and B/W, B/W inverse
Solutions
Oil industryNatural gasCoal miningSmeltingTransportationChemical plantsDust and other flammable/explosive environments
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
General
| Product name | AGT-EP-HTRC6200-30 Explosion-proof Dual Sensor Thermal Imaging Camera |
|---|---|
| Model | AGT-EP-HTRC6200-30 |
| Model number | AGT-EP-HTRC 6200-30 |
| SMARTID | Cb-000059 |
Thermal
| Detector type | 5th generation uncooled focal plane array VOx detector |
|---|---|
| Resolution | 640×512 |
| Spectral range | 7.5 ~ 14 μm |
| NETD | ≤50 mK (@25°C F1.0) |
| Focal length | 30 mm |
| Field of view | 20.6°×16.5° |
| Temperature range (standard) | −20°C ~ +120°C |
| Temperature range (extended) | −20°C ~ +550°C |
| Temperature measurement mode | Full-screen temperature information back, point, line, surface, irregular areas, simultaneously detect 16 |
| Temperature correction | Supported |
| Emissivity correction | Supported |
| Atmospheric transmittance correction | Supported |
| Humidity correction | Supported |
| Over-temperature alarm | Sound and light alarm |
| Alarm output | Reserve switch quantity alarm output |
| External linkage | Manual/automatic linkage fire fighting system and broadcasting system |
| Alarm log | Record temperature data of each object in real time, automatically generate change trend curve, automatically store temperature data, image snapshot and video recording when alarm triggered, create and record relevant log, video real-time storage and playback (with professional software) |
Visible
| Sensor target | 1/1.8 inch star-level CMOS integrated ICR dual-filter day and night switching |
|---|---|
| Resolution | 2 megapixels, 1920×1080 |
| Illuminance (color) | 0.005 Lux |
| Illuminance (black and white) | 0.001 Lux |
| Video coding | H.265/H.264 video format, support for multi-stream |
| Video coding rate | 32 KBPS ~ 16 Mbps |
| Frame rate | 60 Hz, 30 fps |
| Local storage | SD card local storage |
| Mobile detection | Supported |
| Occlusion alarm | Supported |
| Cross-border detection | Supported |
| Area intrusion detection | Supported |
| White balance | Supported |
| Electronic shutter | Supported |
| Strong light suppression | Supported |
| 3D digital noise reduction | Supported |
| Wide dynamic | Supported |
| Infrared overexposure | Supported |
| Focal length | 6.1 mm ~ 317 mm, 2 million high definition electric zoom |
| Focus | Manual/Automatic Focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed |
| Aperture | Auto |
| Day-night pass light | 0.4-0.75 μm visible broad spectral window and 0.8-0.95 μm near-infrared laser narrow spectral window |
| Preset position | Precision potentiometer, variable focus feedback |
Laser
| Power | 4W |
|---|---|
| Wavelength | 810 nm infrared laser |
| Illumination angle | 2.0° ~ 70.0°, DSS digital step illumination angle control technology |
| Homogenization | Patented superhomogenization technology for the high-definition lens group of GHT-II, brightness uniformity of full-focus spot >92% |
| Laser safety | ZQB laser beam processing patent technology, in line with IEC 60825 safety standards |
Enhancements
| Image enhancement | SDE Digital Image Enhancement Technology to enhance image details |
|---|---|
| Pseudo-color polarity | 16 pseudo-color images, hot black/hot white polarity |
| Image parameters | AGC automatic gain control, brightness, contrast |
| Electronic zoom | 2×, 4×, support global synchronous display |
| NUC correction | Automatic/manual correction, background correction |
Detection
| Vehicle distance | 2520 m |
|---|---|
| Person distance | 1000 m |
| Fire source distance | 1200 m (@2×2 m) |
Recognition
| Vehicle distance | 720 m |
|---|---|
| Person distance | 300 m |
Pan-Tilt
| Load | 30 kg CNC pan set |
|---|---|
| Pan range | Horizontal 0°~360° |
| Tilt range | Pitch −90°~+90° |
| Pan speed | Horizontal 0.1°/s ~ 30°/s |
| Tilt speed | Pitch 0.1°/s ~ 30°/s |
| Speed adaptive | Support lens focal length speed adaptive function |
Housing
| Material | 304/316L stainless steel |
|---|---|
| Structure | Double side loading |
| Window glass | 4 mm crystallite infrared high efficiency antireflection HLIN optical glass, transmittance >98% |
| Protection level | IP68 |
| Explosion proof marking | Ex d IIC T6 Gb/Ex tD A21 IP68 T80°C |
Interface
| Network interface | 1-way RJ45, 10/100base-t adaptive |
|---|
Network
| Protocols | HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP |
|---|---|
| Standards | ONVIF and GB28181 protocol |
Consumption
| Total power consumption | 70W |
|---|
Weight
| Total weight | 35 kg (including head) |
|---|
Environment
| Working temperature | −40°C ~ +60°C |
|---|---|
| Storage temperature | −45°C ~ +70°C |
| Humidity | ≤95% RH (@+25°C) |
| Temperature shock | Front window designed to withstand shock and thermal shock test specified in GB 3836.1-2010 |
| Impact resistance | Withstands impact test specified in GB/T2423.5-2019 |
| Working surface temperature | ≤80°C |
| Protection level | IP68 |
| Explosion proof marking | Ex d IIC T6 Gb/Ex tD A21 IP68 T80°C |
