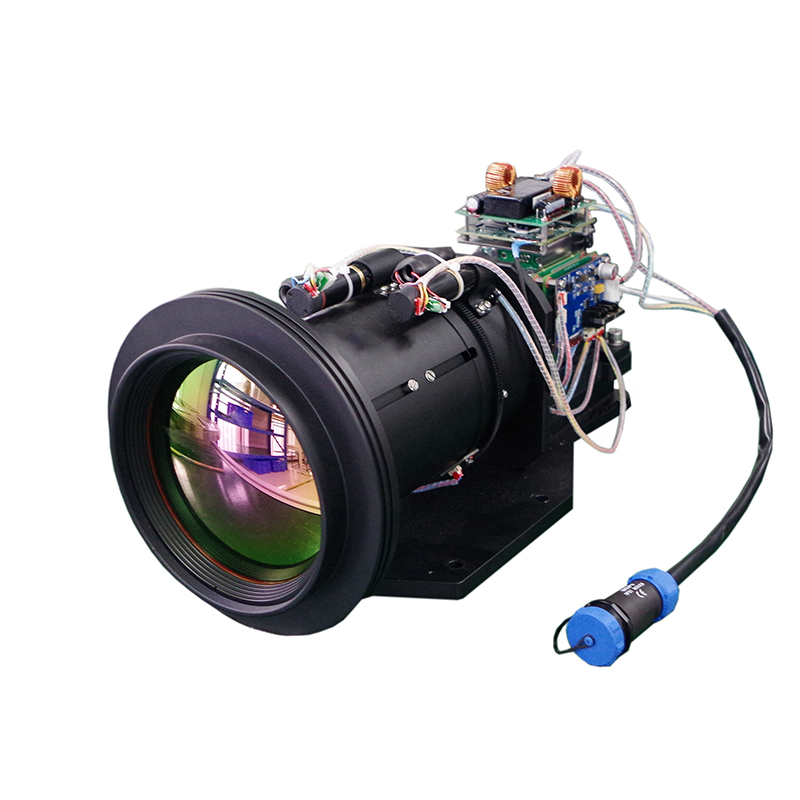

AGT-CTC64080 Cooled PTZ Thermal Imaging Camera
Model AGT-CTC64080
Long-range cooled MWIR PTZ thermal camera with 640×512 resolution, 40–800mm continuous zoom, and 20mK NETD for 24-hour forest fire preven…
SKU Cb-000055 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- 20mK NETD ensures premium thermal image quality
- Unique AS+DOE continuous optical zoom and 3CAM high-precision mechanical engineering
- Superb inhomogeneous correction ensures crisp thermal image
- SDE image enhancement
- Aluminum alloy enclosure, IP66 rated
Overview
- Long range 24-hours monitoring
- Delicate and smooth images
- Convenient for installation and application
- 360-degree omni-directional Pan-Tilt
- Super-strong aluminum alloy with IP66
- Higher sensitivity
- Effective in all environments
- Small size and low weight
Solutions
Seaport and airport monitoringWater system monitoringStorage monitoringBase security monitoringOilfield and oil depot securityFire source prevention and monitoringEcological and environmental monitoringBorder and coastal defenseUrban security and anti-UAV applicationsHighways and railways monitoring
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Detection
| Tank | 20000m |
|---|---|
| Human | 15000m |
| Tank | 13000m |
| Human | 8000m |
| Spectral range | 3.7～4.8μm MWIR |
Sensor
| Detector | FPA MCT detector |
|---|---|
| NETD | 20mK (@25℃) |
Dimensions
| Pixel size | 15μm |
|---|
Lens
| Optical axis stability | 1.2mrad |
|---|---|
| Lens control | Motorized zoom, auto focus |
Image Processing
| Image enhancement | SDE |
|---|---|
| Color | White hot/Black hot |
| Brightness and contrast | AGC, adjustable |
| Digital zoom | 2X, 4X |
| Cross | display |
| Correction | Shutter/Background |
Environment
| Enclosure | aluminum alloy, sealed |
|---|---|
| Working temp | -40℃～+60℃ |
| Storage temp | -45℃～+70℃ |
| Ingress protection | IP66 |
| Power consumption | 23W (normal), 30W (peak) |
Interface
| Control | RS485/RS232 (PELCO D, baud rate: 2400bps/s) |
|---|---|
| Menu | OSD |
| Video | PAL/NTSC |
| Power supply | DC24V |
| Connector | waterproof aviation connector |
