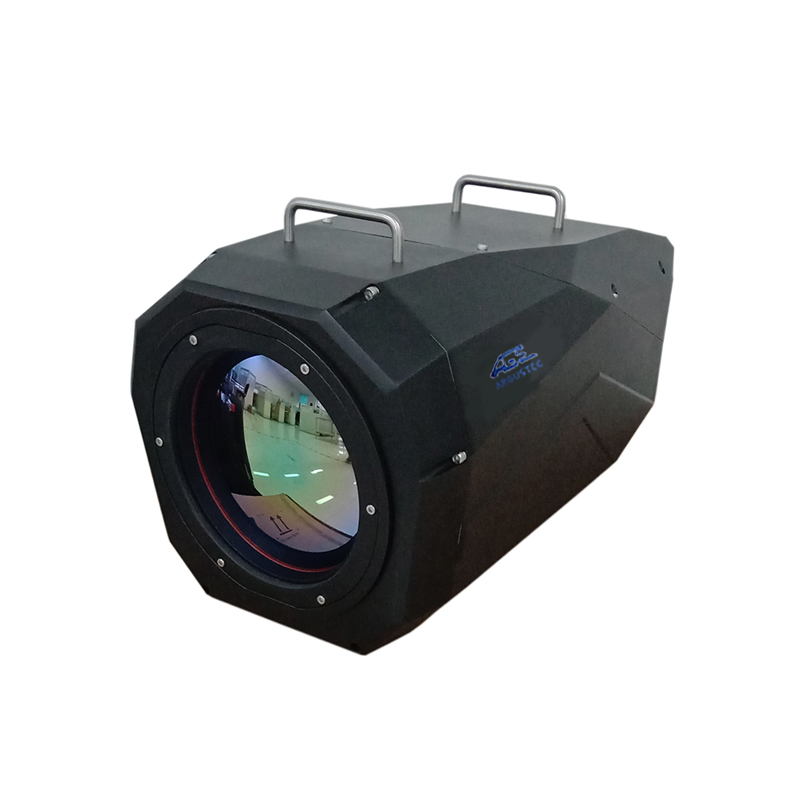

AGT-CTC63066 Outdoor Cooled Thermal Imaging Camera for Forest Fire
Model AGT-CTC63066
The AGT-CTC63066 is an outdoor cooled MWIR thermal imaging camera with 640×512 resolution, 20mK NETD, and 30–660mm continuous zoom for lo…
SKU Cb-000024 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- 20mK NETD ensures premium thermal image quality
- Unique athermalized DOE continuous optical zoom and 3CAM high-precision mechanical engineering
- Superb inhomogeneous correction ensures crisp thermal image
- SDE image enhancement
- Aluminum alloy enclosure, IP66 rated
Overview
- Long-range 24-hour monitoring
- Delicate and smooth images
- Convenient for installation and application
- 360-degree omnidirectional pan-tilt
- Super-strong aluminum alloy with IP66
- Higher sensitivity
- Effective in all environments
- Small size and low weight
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Detection
| Tank | 19500m |
|---|---|
| Human | 13500m |
| Tank | 11000m |
| Human | 6300m |
| Spectral Range | 3.7～4.8μm MWIR |
Sensor
| Detector | FPA MCT detector |
|---|---|
| NETD | 20mK (@25℃) |
Dimensions
| Pixel Size | 15μm |
|---|
Lens
| Optical Axis Stability | 1.2mrad |
|---|---|
| Lens Control | Motorized zoom, auto focus |
Image Processing
| Image enhancement | SDE |
|---|---|
| Color | White hot/Black hot |
| Brightness and contrast | AGC, adjustable |
| Digital zoom | 2X, 4X |
| Cross | display |
| Correction | Shutter/Background |
Environment
| Enclosure | aluminum alloy, sealed |
|---|---|
| Working temp | -40℃～+60℃ |
| Storage temp | -45℃～+70℃ |
| Ingress protection | IP66 |
| Power consumption | 23W(normal), 30W(peak) |
Interface
| Control | RS485/RS232(PELCO D, baud rate:2400bps/s) |
|---|---|
| Menu | OSD |
| Video | PAL/NTSC |
| Power supply | DC24V |
| Connector | waterproof aviation connector |
