Cb-000038

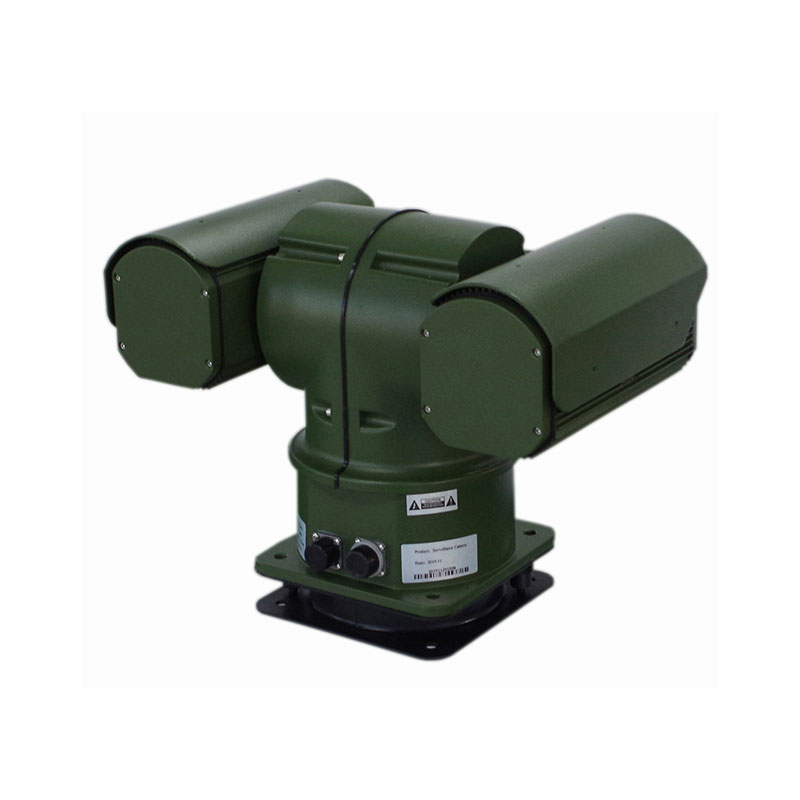

AGT-BTVC4105-1930 Vehicle-Mounted Advanced Smart Sensor Infrared Camera
Model AGT-BTVC4105-1930
A rugged vehicle-mounted dual-sensor PTZ camera combining a long-range thermal imager and a 2 MP 30x visible camera for 24-hour surveilla…
SKU Cb-000038 · Quoted & supported by Circuitbull® (Volls Global Inc)
Key Benefits
- Long-range 24-hour monitoring
- Delicate and smooth images
- Convenient for installation and application
- 360° omni-directional pan-tilt
- Super-strong aluminum alloy with IP66
- Higher sensitivity
- Effective in all environments
- Small size and low weight
Overview
- VOx uncooled thermal detector with 384 × 288 resolution (optional 640 × 512) and NETD ≤50 mK @25°C F1.0
- 1/2.8" starlight CMOS visible camera with 1920 × 1080 resolution, 0.05 Lux color / 0.01 Lux B/W sensitivity, and 4.5–135 mm 30x optical zoom
- Dual-stream network output via RJ45 10/100 Base-T with RS422/485 and support for TCP/IP, UDP, IPv4/v6, HTTP, RTP, RTSP, ONVIF2.0, GB28181, and other protocols
- High-speed PTZ: 360° continuous pan, +9° to -90° tilt, pan speed 0.01–100°/s, tilt speed 0.01–60°/s, 0.1° accuracy, 255 presets, 6 cruising lines, apple-skin scanning, and line-cruising
- Intelligent functions: cross-border/intrusion detection, target tracking, shot-point/fire detection and alert; 255-level alarm threshold
- Integral aluminum alloy housing, IP66 weatherproof/dustproof, operating temperature -25°C to +60°C (optional -40°C)
Specifications
Technical specification
Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.
Detection
| Recognition | Vehicle: 1,200m / Human: 470m |
|---|---|
| Spectral Range | 7.5～14μm |
| Rotation Range | Pan: 0 - 360° continuously, Tilt: +9° ~ -90° |
Sensor
| Thermal Sensor | 5th generation FPA VOx Detector |
|---|---|
| NETD | 50mK (@25°C F1.0) |
| Visible Imaging Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
Lens
| Thermal Focal Length | 50mm F1.0 |
|---|---|
| Visible Focal Length | 4.5 - 135mm 30X zoom, 2 Megapixel electric focus |
PTZ
| PTZ Load Capacity | 10 kg |
|---|---|
| PTZ Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
Tracking
| Presets | 255 presets, support lens zooming and focusing preset |
|---|
Interface
| Network Interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
|---|
Environment
| Operating Temperature | -25°C~+60°C (-40°C Optional) |
|---|---|
| Storage Temperature | -45°C～70°C |
| Protection Level | IP66 |
Power
| Power Consumption | 50W |
|---|---|
| Power Supply | AC/DC24V, anti-reverse connection protection |
| Weight | ≤8.5 kg (include PTZ) |
