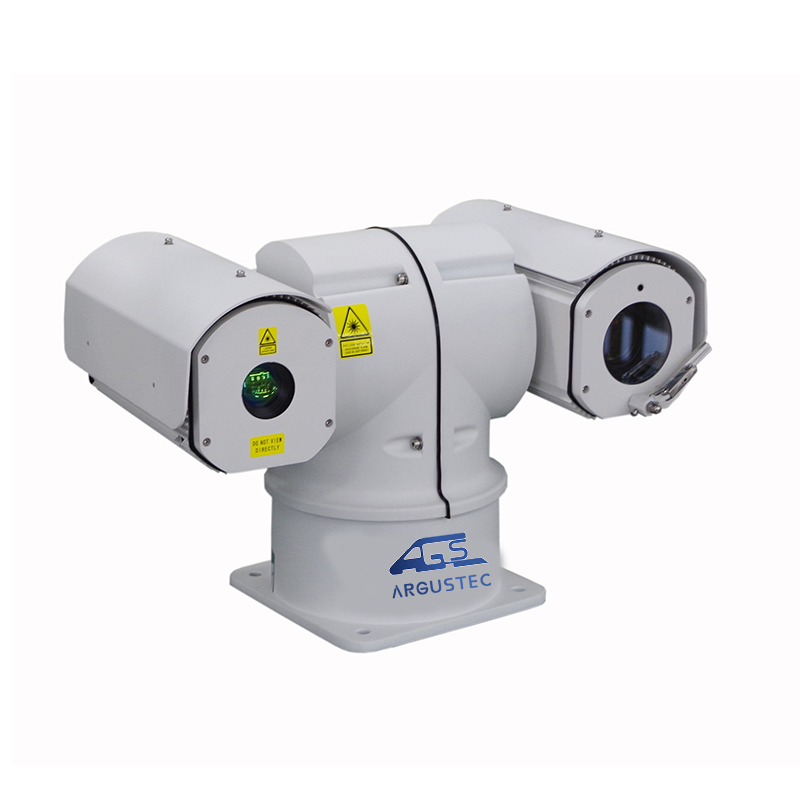

AGT-BRC1930X Infrared Professional Laser Night Vision Camera for Vehicle

Cb-000025

AGT-BRC1930X Infrared Professional Laser Night Vision Camera for Vehicle

Name: AGT-BRC1930X Infrared Professional Laser Night Vision Camera for Vehicle
Brand: Circuitbull®
SKU: Cb-000025
Availability: InStock

Model AGT-BRC1930X

The AGT-BRC1930X is a vehicle-mounted infrared laser night vision PTZ camera with 1080p visible imaging, 810nm NIR laser illumination, 36…

Request quote View datasheet Download PDF Related solution

SKU Cb-000025 · Quoted & supported by Circuitbull® (Volls Global Inc)

Key Benefits

Long-range 24-hour monitoring
Delicate and smooth images
Convenient for installation and application
360° omni-directional pan-tilt
Super-strong aluminum alloy with IP66
Higher sensitivity
Effective in all environments
Small size and low weight

Overview

Infrared laser camera specially developed for vehicle night vision
Intelligent functions: cross-border/intrusion detection and target tracking
255-level alarm threshold can be set
Advanced algorithm supports shot-point/fire detection and alert
One integral aluminum alloy housing, waterproof, IP66 weatherproof, anti-dust

Solutions

Seaport and airport monitoring Water system monitoring Storage monitoring Oilfield and oil depot security Fire source prevention and monitoring Ecological and environmental monitoring Border and coastal defense Urban security and anti-UAV applications Highways and railways monitoring

Specifications

Technical specification

Housing, PTZ, imaging, range, and ratings — what you need to specify and buy.

Detection

Day	800m
Night	450m

Laser

Consumption	5W
Wavelength	810nm NIR
Encapsulation	sealed with inert gas to prevent oxidation

Lens

Lens form	30mm F1.4 telephoto lens; Laser angle:
2°~40°; Homogenization	GHT-II super homogenization HD illumination patented technology
5 - 135mm, 200 mil electrical focus; Focusing	manual/auto focus, 3A adaptive active focusing algorithm, supporting multiple trigger modes, accurate and speedy; Night-day wide spectrum:

Sensor

Surface	1/2.8" Star Level CMOS, Integrated ICR Dual Filter D/N Switch; Resolution: 2 million pixels, 1920 x 1080; Illumination:

PTZ

PTZ Duty	10 kg

Rotation

Pan	0 - 360° continuously
Tilt	+90°~-90°

Tracking

Preset	255 presets, support lens zooming and focusing preset

Interface

Network Interface	RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485)

Environment

Operating Temperature	-25°C~+60°C (-40°C optional)
Storage Temperature	-45°C~70°C
Protection Level	IP66

Power

Total Consumption	180W
Power Supply	AC/DC24V, anti-reverse connection protection
Weight	≤25kg (include PTZ)
