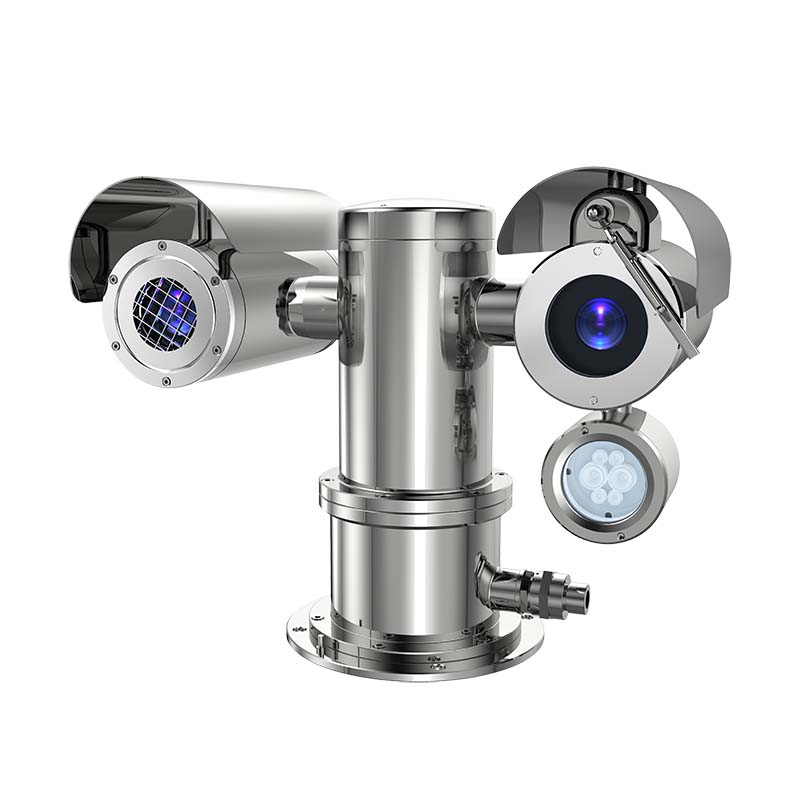

AGT-EP-HTRC6200-30 HD Außen-Wärmebildkamera für Ölfeldsicherheit
Model AGT-EP-HTRC6200-30
Explosionsgeschützte Dual-Spektrum PTZ-Kamera für 24/7-Überwachung in rauen Industriezonen.
SKU Cb-000019 · Quoted & supported by Circuitbull® (Volls Global Inc)
Wesentliche Vorteile
- 24-Stunden-Überwachung auf große Distanz
- Feine und gleichmäßige Wärmebilder
- Bequeme Installation und Anwendung
- 360° omnidirektionale Schwenk-Neige-Abdeckung
- Robustes Edelstahlgehäuse mit IP68-Schutz
- Hohe thermische Empfindlichkeit in allen Umgebungen wirksam
Überblick
- Ungekühlter VOx-Wärmebilddetektor mit 640×512 Auflösung
- NETD ≤50mK (@25°C, F1.0)
- SDE digitale Bildverarbeitung mit AGC und 2×/4× digitalem Zoom
- 16 Pseudofarbpaletten plus Hot-Black/Hot-White-Polarität
Lösungen
Öl- und Gasförderung und -raffinationErdgas- und KohlebergbaubetriebeHütten- und SchwerindustrieanlagenTransportinfrastruktur in GefahrenbereichenChemische, staubige und brennbare/explosive Umgebungen
Spezifikationen
Technische Spezifikation
Gehäuse, PTZ, Bild, Reichweite und Klassen — was Sie spezifizieren und kaufen müssen.
General
| Product name | AGT-EP-HTRC6200-30 HD Outdoor Thermal Imaging Camera for Oilfield Safety |
|---|---|
| Model | AGT-EP-HTRC 6200-30 |
| SMARTID | Cb-000019 |
| Application | oil, natural gas, coal mining, smelting, transportation, chemical, dust and other inflammable/explosive environments |
Housing
| Material | 304/316L stainless steel |
|---|---|
| Structure | double side loading |
| Window glass | 4mm crystallite infrared high efficiency antireflection HLIN optical glass, transmittance >98% |
| Protection level | IP68 |
| Explosion proof marking | Ex d IIC T6 Gb / Ex tD A21 IP68 T80°C |
PTZ
| Load | 30kg |
|---|---|
| Horizontal range | 0° ~ 360° |
| Pitch range | -90° ~ +90° |
| Pan speed | 0.1°/s ~ 30°/s |
| Tilt speed | 0.1°/s ~ 30°/s |
| Focal length speed adaptive | supported |
Thermal
| Detector | 5th generation uncooled focal plane array VOx detector |
|---|---|
| Resolution | 640 × 512 |
| Spectral range | 7.5 ~ 14 μm |
| NETD | ≤50 mK (@25°C, F1.0) |
| Focal length | 30 mm |
| Field of view | 20.6° × 16.5° |
| Image enhancement | SDE digital image enhancement |
| Pseudo color | 16 pseudo-colors, hot black/hot white |
| Image parameters | AGC, brightness, contrast |
| Electronic zoom | 2×/4×, global synchronous display |
| NUC correction | auto/manual, background correction |
| Temperature range | -20°C ~ +120°C / -20°C ~ +550°C |
| Measurement mode | full-screen, point, line, area, irregular regions, up to 16 regions |
| Precision correction | temperature correction, emissivity, atmospheric transmittance, humidity |
| Over-temperature warning | sound and light alarm, switch output, manual/auto linkage to firefighting/broadcasting |
| Alarm log | real-time temperature data, trend curve, snapshot/video on alarm, log and playback (with professional software) |
Visible
| Image sensor | 1/1.8" starlight CMOS with ICR dual-filter day/night switching |
|---|---|
| Resolution | 1920 × 1080 (2 MP) |
| Min illumination color | 0.005 Lux |
| Min illumination B/W | 0.001 Lux |
| Video compression | H.265/H.264 |
| Video bitrate | 32 Kbps ~ 16 Mbps |
| Frame rate | 60 Hz / 30 fps |
| Storage | SD card local storage |
| Smart detection | motion detection, occlusion alarm, cross-border detection, area intrusion detection |
| Image features | white balance, electronic shutter, strong light suppression, 3D DNR, wide dynamic, infrared overexposure |
| Focal length | 6.1 mm ~ 317 mm motorized zoom |
| Focus | auto/manual, 3A adaptive active focus algorithm |
| Iris | auto |
| Spectral window | 0.4-0.75 μm visible broad spectral window and 0.8-0.95 μm near-infrared laser narrow spectral window |
| Preset position | precision potentiometer, variable focus feedback |
Laser
| Power | 4W |
|---|---|
| Wavelength | 810 nm |
| Illumination angle | 2.0° ~ 70.0° |
| Angle control | DSS digital step illumination angle control |
| Uniformity | >92% |
| Safety standard | IEC 60825 compliant, ZQB laser beam processing patent technology |
Detection
| Vehicle | 2520 m |
|---|---|
| Person | 1000 m |
| Fire source | 1200 m (@2×2m) |
Recognition
| Vehicle | 720 m |
|---|---|
| Person | 300 m |
Power
| Total consumption | 70W |
|---|
Weight
| Total | 35 kg (including head) |
|---|
Network
| Interface | 1× RJ45 10/100Base-T |
|---|---|
| Protocols | HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP |
| Compliance | ONVIF, GB28181 |
Environment
| Operating temperature | -40°C ~ +60°C |
|---|---|
| Storage temperature | -45°C ~ +70°C |
| Humidity | ≤95% RH (@+25°C) |
| Protection level | IP68 |
| Explosion proof marking | Ex d IIC T6 Gb / Ex tD A21 IP68 T80°C |
| Working surface temperature | ≤80°C |
| Temperature shock | front window withstands shock and thermal shock test per GB 3836.1-2010 |
| Impact resistance | withstands impact test per GB/T2423.5-2019 |
