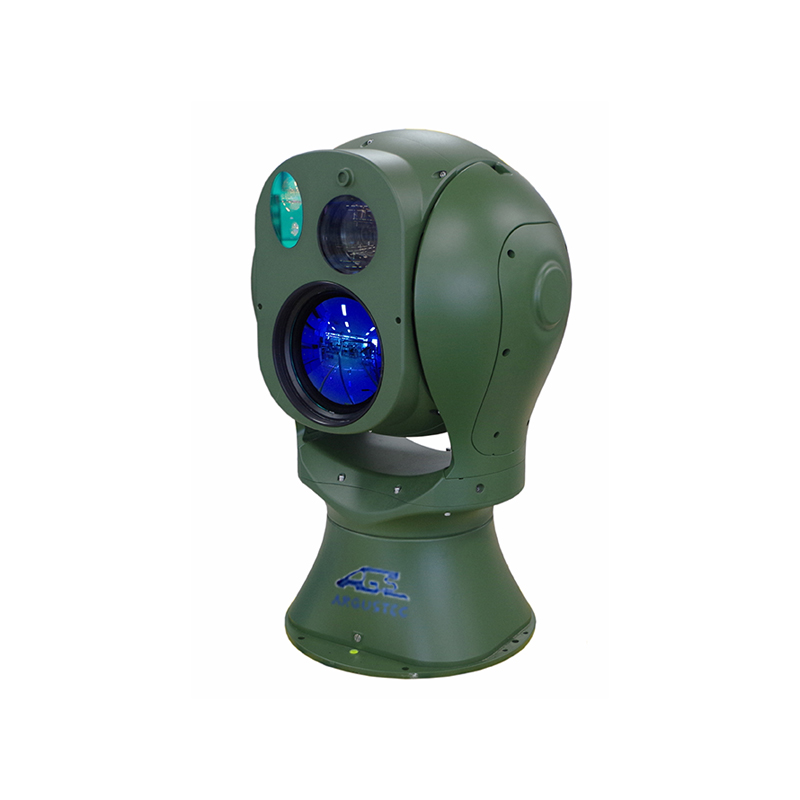

كاميرا تصوير حراري PTZ احترافية AGT-Z50IV-CTVC690110-21100-LRF15K
Model AGT-Z50IV-CTVC690110-21100-LRF15K
مراقبة ذكية على مدى بعيد: كاميرا PTZ حرارية متعددة الموجات مع ليزر 15 كم وتحليلات AI
SKU Cb-000037 · Quoted & supported by Circuitbull® (Volls Global Inc)
الفوائد الرئيسية
- كشف متعدد الطيف يجمع بين الكاميرا المرئية عالية الدقة، والكاميرا الحرارية MWIR، والليزر NIR لتغطية نشطة/سلبية، ليلاً/نهاراً، وفي جميع الأحوال الجوية
- PTZ عالي السرعة مع دوران يصل إلى 80°/s، وتسارع 100°/s²، ودقة تحديد موضع 0.02° لالتقاط الأهداف وتتبعها بسرعة
- تغطية كاملة الأبعاد عبر دوران مستمر 360° وميل من -90° إلى +90° مع مراقبة خالية من الزوايا الميتة
- تحليلات ذكاء اصطناعي مدمجة تشمل كشف الحرائق، والتسلل، وعبور الحدود، والتجوال، وتصنيف الأشخاص/المركبات، وكشف الوجوه، والتتبع التلقائي
- تصميم متين مصنف IP66/IP67 يعمل في درجات حرارة من -40 °C إلى +60 °C مع حماية من التدفقات الكهربائية 6000 V ومقاومة رياح المستوى 12
نظرة عامة
- يجمع بين الكاميرا المرئية، والتصوير الحراري المبرد/غير المبرد، ووحدات إضاءة ليزر NIR اختيارية للمراقبة على مسافات بعيدة في الظلام الكامل والضباب والمطر
- تشمل التحسينات الاختيارية مقياس المسافة بالليزر، ونظام تحديد المواقع GPS، والبوصلة الإلكترونية، ونظام التتبع التلقائي، ووحدة تحليل الذكاء الاصطناعي للمراقبة على مدار اليوم وكاملة الأبعاد
- منصة دوارة مؤازرة بمحورين وإطارين كروية مع نوافذ مزدوجة/ثلاثية، ومساحة، وخيار تثبيت الصورة بالجيروسكوب، وذاكرة عند انقطاع الطاقة
- تتضمن واجهة الشبكة RJ45 10/100Base-T، وبروتوكولات HTTP/HTTPS/RTSP/ONVIF/GB28181، وSDK مجاني، ووحدة ألياف بصرية مدمجة اختيارية
الحلول
إدارة المرور الذكي، ومراقبة الطرق السريعة، وإنفاذ سلامة الطرقالمراقبة على مدى بعيد للمحيط، والحدود، والسواحلالأمن في جميع الأحوال الجوية، وتتبع الأهداف، وحماية البنية التحتية الحيويةكشف الحرائق ومراقبة الإنذار في المناطق الخارجية الواسعة
المواصفات
المواصفات الفنية
الهيكل وPTZ والتصوير والمدى والتصنيفات — ما تحتاجه للشروط والشراء.
Detection
| Detection Distance | Vehicle:22km Human 18km |
|---|---|
| Recognition Distance | Vehicle:15km Human 9km |
| Range | 200 to 15000 meters |
| Ranging Accuracy | ± 3m |
| Laser wavelength | 1570 nm |
Thermal Camera
| Detector | cooled focal plane array MCT detector |
|---|---|
| NETD | 20mK |
| Lens control | Electric Zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed; 3CAM mode and AS + DOE optical structure, high infrared transmittance, the zoom process has no virtual focus and the axis is small |
| Image Enhancement | SDE Digital Image Enhancement Technology, enhance image details, support 255 level thermal image enhancement adjustment |
| Pseudo-color polarity | 16 pseudo-color images, hot black/hot white polarity |
| Image parameters | AGC automatic gain control, brightness, contrast adjustment |
| Rangefinder | supports rangefinder |
| Bad Correction | support for bad correction |
| Image Correction | support manual correction, background correction, automatic correction time interval, Gamma correction parameters adjustable |
| Bright Light Protection | supports protection against Sun Damage |
| Detector Array | 640 × 512 |
Visible Camera
| Sensor type | backlit ultra-low illumination star-level CMOS |
|---|---|
| Minimum illuminance | Color: |
| Lens | 12～1100mm, Mega HD electric zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed |
| Image Processing | support for white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic, heat wave drift suppression |
Audioandvideo
| Resolution | 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240 |
|---|---|
| Visible resolution | 2592 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 240 |
| Video Coding | H. 265/h. 264/MJPEG, multi-stream support |
| Video rates | 32 KBPS to 16 Mbps |
| Audio encoding | G. 711A/g. 711U/G726 |
| Image rollover | right/left/up/down/diagonal |
| OSD settings | Support Channel name, time, PAN, field of view angle, focal length of the OSD display settings, support preset position name settings |
Intelligentfunction
| Fire Detection Alarm | Threshold Level 255, target size, target number 1-16 can be set, automatic selection of the most prominent target display, hot tracking |
|---|---|
| Intelligence analysis | support intrusion detection, cross-border detection, entry/exit area detection, motion detection, loitering detection, people gathering, fast moving, target tracking, items left behind, items taken; Human/vehicle target detection, face detection; and support 16 regional settings; support intrusion detection, human, vehicle filtering function; support target temperature filtering function |
| Automatic tracking | single-scene tracking support multi-scene tracking support panoramic tracking support alarm linkage tracking |
| Intelligent Information Fusion | support 512 AR intelligent information fusion, support point of fire, intelligent analysis video identification information fusion, support azimuth angle, field of view, focal length, multiple information fusion |
| Image Fusion | support 18 kinds of dual-light fusion mode, support picture-in-picture function |
| Alarm management | Support Alarm capture upload |
Enhancements
| Ranging function | support passive ranging; support optional laser ranging |
|---|---|
| Strong light protection | support, protection from Sun Burn function |
| Temperature Correction | non-thermal design, imaging sharpness is not affected by temperature |
| Scene mode | support multi-configuration scene, adapt to different environment applications |
| Auto-focus tuning | support remote auto-focus accuracy parameter adjustment, adapt to different scenarios |
| Day-night cruise | day-night cruise groups with different preset, day cruise 1-40 preset, night cruise 41-80 preset, according to the state of light automatically switch day and night, adapt to different space-time scenarios |
| Lens servo | support lens pre-position, focal length back, focal length positioning function |
| Power-off memory | support to restore the pre-power-off position, pre-position state, cruise state, line scan state |
| Off and on | support |
| Camera diagnosis function | support network alarm, support IP conflict alarm, support illegal access alarm (illegal access number, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video block alarm, anti-sun damage (support threshold, block time can be set) |
| Life Cycle Management | Health Index recording function, support working time, shutter times, working temperature, limit temperature, etc. |
| Remote Maintenance | with fault inquiry, self-examination, remote restart function; online upgrade, remote upgrade |
| Keyframe settings | support keyframe interval 100-level adjustable |
| Configuration File | Support Configuration File Import and export function |
| Web Access | support WEB full function configuration, remote online upgrade |
Securitycontrol
| Support illegal access alarm | illegal access number, lock time can be set |
|---|---|
| Security mode | authorized user name and password, support IP white list and black list, Mac White list and black list |
PTZ
| Structure | spherical, multi-dimensional free-form surface shape, small wind resistance, strong anti-shake, can resist 12 strong wind |
|---|---|
| Windows | Dual/triple windows, 2/3 band sensors, wiper |
| Level range | N × 360 ° continuous rotation, after power failure can be mechanically locked |
| Pitch range | -90 ° ~ + 90 °, with soft limit function, program can be set |
| Rotation Speed | level |
| Acceleration | 100 ° S 2 level, 100 ° S 2 pitch |
| Speed adaptation | with intelligent induction speed change function, support lens focal length speed adaptation function |
| Driving mode | adopting high torque rare earth permanent magnet synchronous motor direct drive, high speed start and stop |
| Positioning accuracy | better than |
| Location Time | less than 4s |
| Zero setting | support for horizontal and pitch zero setting |
| Preset cruise | 3000, supports 16 cruise routes, each can support 256 preset positions |
| Path scan | Support Preset Point Cruise, day and night cruise, line scan, frame scan, apple skin scan, scan speed can be set |
| Over watch | preset position/pattern scan/cruise scan/vertical scan/frame scan/panoramic scan/apple peel scan/horizontal fan scan |
| Motor Protection | turntable block and turn protection, high reliability |
| Gyro image stabilization | optional two-axis gyro stabilization, pitch and roll ≤ ± 10 °, period greater than 6 seconds, los stabilization accuracy ≤2 mrad (RMS) |
Interface
| Network interface | 1-way RJ45,10/100base-t adaptive |
|---|---|
| Network protocol | support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocol; support ONVIF and GB28181 protocol |
| Secondary development | provide free SDK, easy to use or convenient secondary development |
| Physical interface | Alloy Waterproof Aviation Plug |
| Optical network | (optional built-in Fiber Module, single mode fiber output, improve anti-interference) |
Power
| Power consumption | the maximum power consumption of the turntable is less than 500W and the stable power consumption is less than 150W |
|---|---|
| Dimensions | Ф565 mm × |
| H880 mm Total weight | ≤105 kg |
Environment
| Working Temperature | -40 °C ~ + 60 °C |
|---|---|
| Storage Temperature | -45 °C ~ + 70 °C |
| Humidity | < 90% Rh |
| Lightning protection | Interface Circuit built-in surge protection, 6000V |
| Salt spray | in PH |
| Protection class | IP66(Ball Chamber air-tight IP67) |
